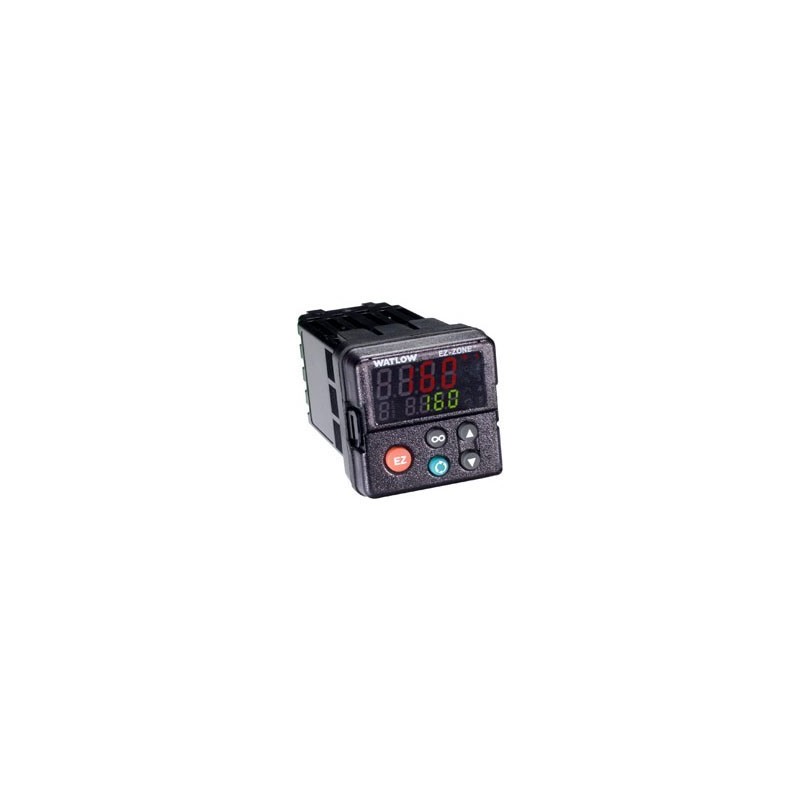

WATLOW EZ-ZONE® PM6C3CK-AAAABAA
- This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
- The serial communications when used with the free WATLOW software, saves time of controller setup.
- Also available in 100 ~ 240VAC Model PM6C1CK-AAAABAA
Updated EZ-ZONE® Features
- These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C3CK-BAAABAA
- Watlow's new version of the EZ-ZONE® EXPRESS is the LEGACY® model - PM6C3CK-BAAAHWP
- Available with a more extensive menu EZ-ZONE® PLUS® thermal process - PM6C3CK-BAAAPWP
Universal Input
- This can be a thermocouple grounded or ungrounded
- It can be an RTD 2-wire or 3-wire
- It can be 0-20mA or 0-50mV
Universal Process Output
The universal process is range selectable between 0-10VDC or 4-20mA.
The differences between (Form A) & (Form C)
Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).
Direct replacement for Watlow Series 93 & Series 96
This unit replaces obsolete models: 93AA-1CK1-00AA, 93AA-1CK1-00AB, 93AA-1CK1-00AC, 93AA-1CK1-00AD, 93AA-1CK1-00GG, 93AA-1CK1-00GR, 93AA-1CK1-00RG, 93AA-1CK1-00RR, 93AA-1KC1-00AA, 93AA-1KC1-00AB, 93AA-1KC1-00AC, 93AA-1KC1-00AD, 93AA-1KC1-00GG, 93AA-1KC1-00GR, 93AA-1KC1-00RG, 93AA-1KC1-00RR, 93AB-1CK1-00AA, 93AB-1CK1-00AB, 93AB-1CK1-00AC, 93AB-1CK1-00AD, 93AB-1CK1-00GG, 93AB-1CK1-00GR, 93AB-1CK1-00RG, 93AB-1CK1-00RR, 93AB-1KC1-00AA, 93AB-1KC1-00AB, 93AB-1KC1-00AC, 93AB-1KC1-00AD, 93AB-1KC1-00GG, 93AB-1KC1-00GR, 93AB-1KC1-00RG, 93AB-1KC1-00RR, 93BA-1CK1-00AA, 93BA-1CK1-00AB, 93BA-1CK1-00AC, 93BA-1CK1-00AD, 93BA-1CK1-00GG, 93BA-1CK1-00GR, 93BA-1CK1-00RG, 93BA-1CK1-00RR, 93BA-1KC1-00AA, 93BA-1KC1-00AB, 93BA-1KC1-00AC, 93BA-1KC1-00AD, 93BA-1KC1-00GG, 93BA-1KC1-00GR, 93BA-1KC1-00RG, 93BA-1KC1-00RR, 93BB-1CK1-00AA, 93BB-1CK1-00AB, 93BB-1CK1-00AC, 93BB-1CK1-00AD, 93BB-1CK1-00GG, 93BB-1CK1-00GR, 93BB-1CK1-00RG, 93BB-1CK1-00RR, 93BB-1KC1-00AA, 93BB-1KC1-00AB, 93BB-1KC1-00AC, 93BB-1KC1-00AD, 93BB-1KC1-00GG, 93BB-1KC1-00GR, 93BB-1KC1-00RG, 93BB-1KC1-00RR, 965A-3CK1-0000, 965A-3CK1-00AM, 965A-3CK1-00BH, 965A-3CK1-00BR, 965A-3CK1-00EL, 965A-3CK1-00GG, 965A-3CK1-00GR, 965A-3CK1-00RG, 965A-3CK1-0200, 965A-3CK1-02AM, 965A-3CK1-02BH, 965A-3CK1-02BR, 965A-3CK1-02EL, 965A-3CK1-02GG, 965A-3CK1-02GR, 965A-3CK1-02RG, 965A-3CK1-0300, 965A-3CK1-03AM, 965A-3CK1-03BH, 965A-3CK1-03BR, 965A-3CK1-03EL, 965A-3CK1-03GG, 965A-3CK1-03GR, 965A-3CK1-03RG, 965A-3CK1-0400, 965A-3CK1-04AM, 965A-3CK1-04BH, 965A-3CK1-04BR, 965A-3CK1-04EL, 965A-3CK1-04GG, 965A-3CK1-04GR, 965A-3CK1-04RG, 965A-3KC1-0000, 965A-3KC1-00AM, 965A-3KC1-00BH, 965A-3KC1-00BR, 965A-3KC1-00EL, 965A-3KC1-00GG, 965A-3KC1-00GR, 965A-3KC1-00RG, 965A-3KC1-0200, 965A-3KC1-02AM, 965A-3KC1-02BH, 965A-3KC1-02BR, 965A-3KC1-02EL, 965A-3KC1-02GG, 965A-3KC1-02GR, 965A-3KC1-02RG, 965A-3KC1-0300, 965A-3KC1-03AM, 965A-3KC1-03BH, 965A-3KC1-03BR, 965A-3KC1-03EL, 965A-3KC1-03GG, 965A-3KC1-03GR, 965A-3KC1-03RG, 965A-3KC1-0400, 965A-3KC1-04AM, 965A-3KC1-04BH, 965A-3KC1-04BR, 965A-3KC1-04EL, 965A-3KC1-04GG, 965A-3KC1-04GR, 965A-3KC1-04RG
Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
