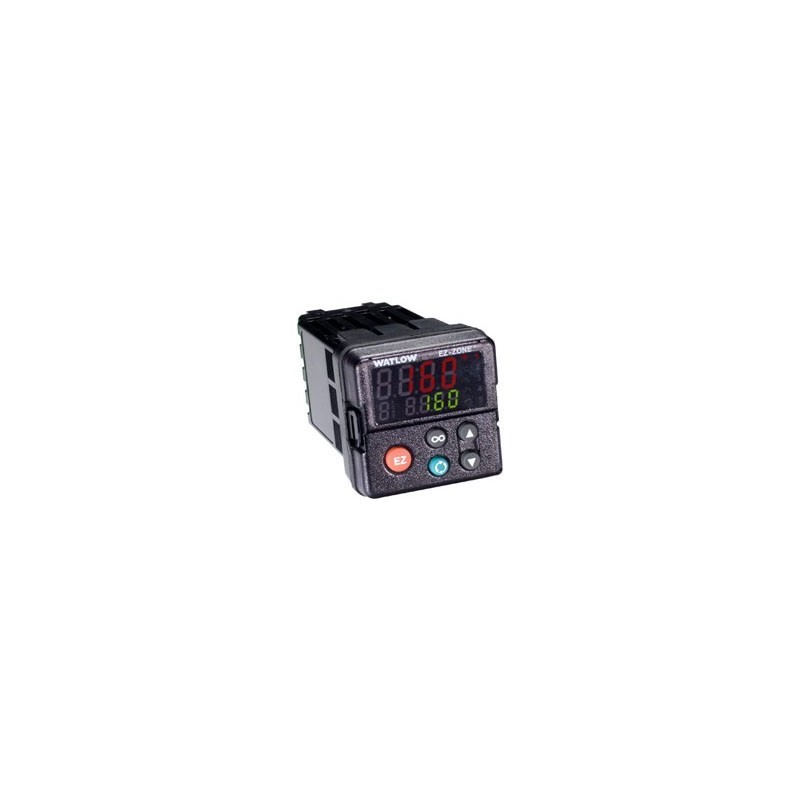

PM6C1EJ-AAFAAAA 1/16-DIN 2-Outputs
  • PM6C1EJ-AAFAAAA 1/16-DIN 2-Outputs
  • PM6C1EJ-AAFAAAA Front View
  • PM6C1EJ-AAFAAAA Rear View

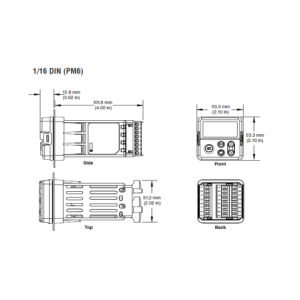

  • PM6C1EJ-AAFAAAA Dimensions

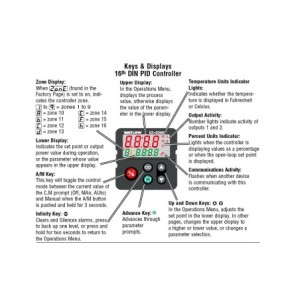

  • PM6C1EJ-AAFAAAA Enhanced Menu Options

PM6C1EJ-AAFAAAA 1/16-DIN 3-Outputs

PM6C1EJ-AAFAAAA
  • One Universal Input
  • Output #1 (E) - Mechanical relay 5A, Form C
  • Output #2 (J) - Mechanical relay 5A, Form A
  • Output #3 (F) - Universal process
  • Operating Voltage 100 to 240VAC
  • Auto-Tune PID Controller With Extensive Menu Options
$492.98
Quantity
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

WATLOW EZ-ZONE® PM6C1EJ-AAFAAAA

  • This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
  • The serial communications when used with the free WATLOW software, saves time of controller setup.

Updated EZ-ZONE® Features

  • These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C1EJ-BAFAAAA
  • Watlow's new version of the EZ-ZONE® is the PLUS® model - PM6C1EJ-BAFAPWP
  • Available with a basic simplified menu for thermal processes - PM6C1EJ-BAFAHWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Review The Data Sheet Tab Or FAQ's For More Specifics Or Check Out The Operator's Manual From The Attachments Tab.
