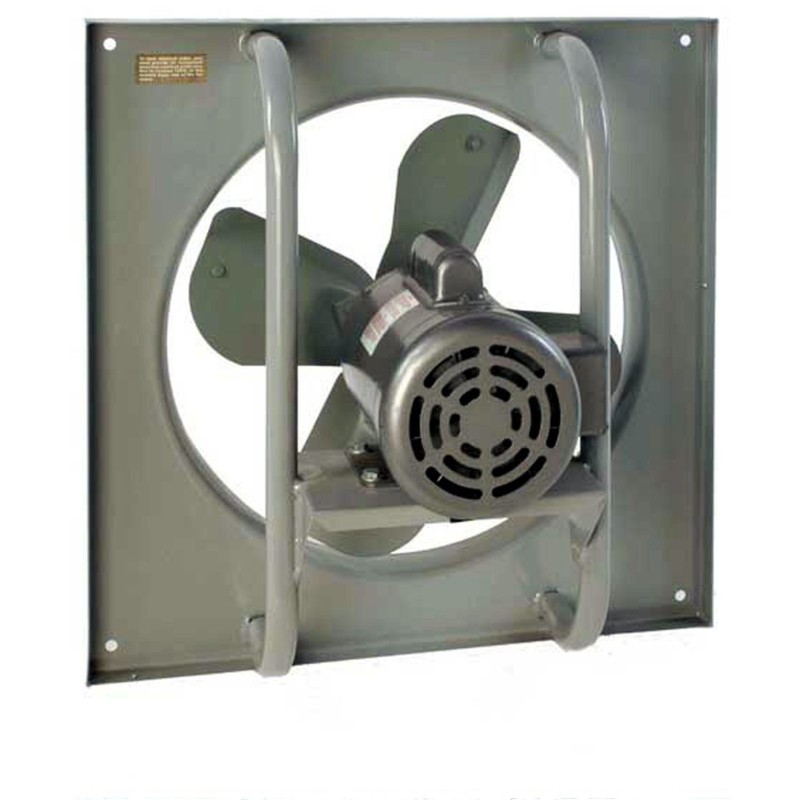

36" Propeller Exhaust Wall Fan, High Velocity

Reference H36V836-3

Brand Airmaster Fan Co.

Airmaster Fan Model H36V836-3
1-1/2-HP 230/460v 3-PH 1150-RPM Totally Enclosed Motor
13300-CFM @0" S.P., 12400-CFM @1/8" S.P, 11600-CFM @1/4" S.P.
10600-CFM @3/8" S.P.
Percieved Pressure Sound 37.1/Sones @5'

$2,674.00

Quantity

Last items in stock

In stock: 2 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Fully Assembled - Ready to Install
Direct Drive Fan
High Pressure - High Velocity
Full Range of Accessories
Made In The USA

Product Details

Reference H36V836-3

In stock 2 Items

Specific References

UPC: 783429253850

Attachments

Download

High Pressure & Velocity Cat.

Download (2.61KB)
