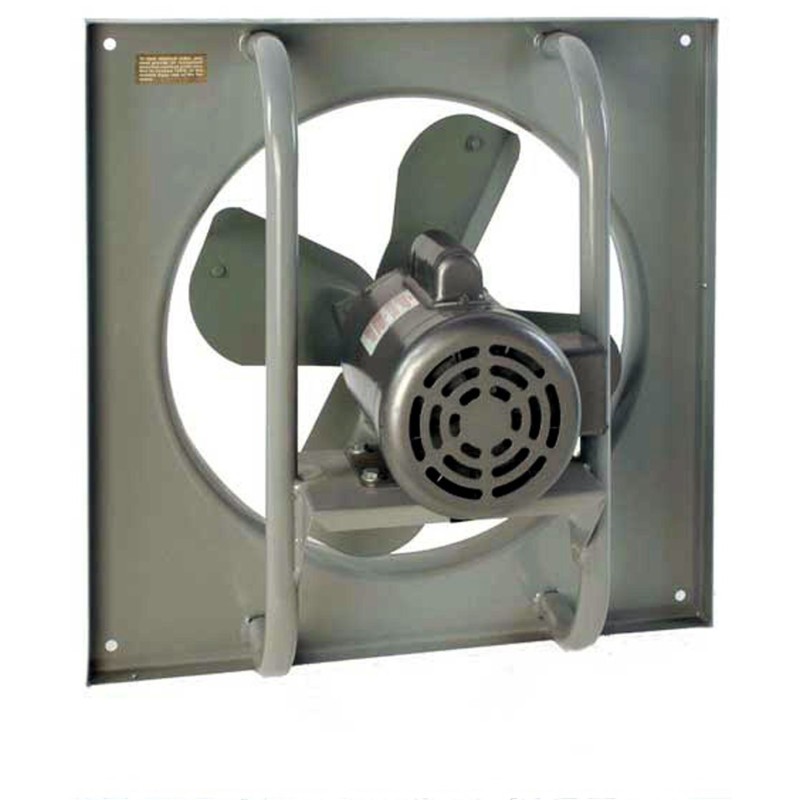

16" Propeller Exhaust Wall Fan, High Velocity

Reference H16V76-1

Brand Airmaster Fan Co.

Airmaster Fan Model H16V76-1
1/2-HP 125/230v 1-PH 1750-RPM Totally Enclosed Motor
2700-CFM @0" S.P., 2590-CFM @1/8" S.P, 2390-CFM @1/4" S.P.
2100-CFM @3/8" S.P., 1740-CFM @1/2" S.P.
Percieved Pressure Sound 18.5/Sones @5'
Can Be Shipped UPS Ground

$1,401.00

Quantity

In stock: 2 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

High Pressure, High Velocity Direct Drive Fan
Fully Assembled - Ready to Install
Full Range of Accessories
Totally Enclosed Motor
Made In The USA

Product Details

Reference H16V76-1

In stock 2 Items

Specific References

UPC: 783429253058

Attachments

Download

High Pressure & Velocity Cat.

Download (2.61KB)
