Switching Devices (3)

Reference: 3035A120AC

Brand: Mercury Displacement Industries

35A 3P 120Vac Mercury Contactor

Coil Rating Per Pole 6.4-VA 1.25kΩ (Coils Are In Parrallel) Contacts Normally Open Rated 35A@480V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG35-1LD3-0000

$152.18

Out-of-Stock

Reference: DB20-24C0-0000

Brand: Watlow Electric Mfg.

DB20-24C0-0000 Watlow Din-A-Mite B

Line Voltage 120~240Vac 3-Phase 2-Controlled Legs Control Voltage 4.5~32Vdc 8mA Maximum Control Current @4.5Vdc Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 33A@77°F(see table below) Available with Shorted SCR Alarm Watlow DB20-24C0-S000

$322.00

Last items in stock

Reference: 1060APS24DC

Brand: Mercury Displacement Industries

60A 1P 24Vdc Mercury Contactor

Coil Rating 3.3-VA 176Ω Contacts Normally Open Rated 60A@480V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG60-6PD1-0000

$80.35

Last items in stock

Out-of-Stock

Reference: DB20-60C0-0000

Brand: Watlow Electric Mfg.

DB20-60C0-0000 Watlow Din-A-Mite B

Line Voltage 277~600Vac 3-Phase 2-Controlled Legs Control Voltage 4.5~32Vdc 8mA Maximum Control Current @4.5Vdc Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 33A@77°F (see table below) Available with Shorted SCR Alarm Watlow DB20-60C0-S000

$342.00

Out-of-Stock

Reference: 2060APS24DC

Brand: Mercury Displacement Industries

60A 2P 24Vdc Mercury Contactor

Coil Rating Per Pole 3.3-VA 176Ω (Coils Are In Parrallel) Contacts Normally Open Rated 60A@480V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG60-6PD2-0000

$156.93

Last items in stock

Reference: DB20-24F0-0000

Brand: Watlow Electric Mfg.

DB20-24F0-0000 Watlow Din-A-Mite B

Line Voltage 120~240Vac 3-Phase 2-Controlled Legs 4~20mA Proportional Control Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 33A@77°F (see table below) Available with Shorted SCR Alarm Watlow DB20-24F0-S000

$352.00

Last items in stock

Out-of-Stock

Reference: 3060APS24DC

Brand: Mercury Displacement Industries

60A 3P 24Vdc Mercury Contactor

Coil Rating Per Pole 3.3-VA 176Ω (Coils Are In Parrallel) Contacts Normally Open Rated 60A@480V 48A@600V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG60-6PD3-0000

$235.17

Out-of-Stock

Reference: DB20-60F0-0000

Brand: Watlow Electric Mfg.

DB20-60F0-0000 Watlow Din-A-Mite B

Line Voltage 277~600Vac 3-Phase 2-Controlled Legs 4~20mA Proportional Control Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 33A@77°F (see table below) Available with Shorted SCR Alarm Watlow DB20-60F0-S000

$372.00

Last items in stock

Reference: 1060APS120AC

Brand: Mercury Displacement Industries

60A 1P 120Vac Mercury Contactor

Coil Rating 5.8-VA 1.25kΩ Contacts Normally Open Rated 60A@480V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG60-1PD1-0000

$80.35

Last items in stock

Reference: DB20-24K2-0000

Brand: Watlow Electric Mfg.

DB20-24K2-0000 Watlow Din-A-Mite B

Line Voltage 120~240Vac 3-Phase 2-Controlled Legs Control Voltage 100~240Vac Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 33A@77°F (see table below) Also Available with Shorted SCR Alarm Watlow DB20-24K2-S000

$343.00

Last items in stock

Out-of-Stock

Reference: 2060APS120AC

Brand: Mercury Displacement Industries

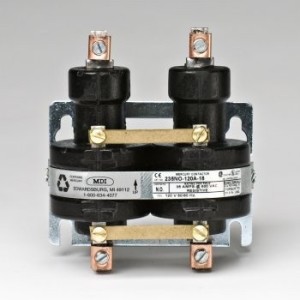

60A 2P 120Vac Mercury Contactor

Coil Rating Per Pole 5.8-VA 1.25kΩ (Coils Are In Parrallel) Contacts Normally Open Rated 60A@480V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG60-1PD2-0000

$156.93

Out-of-Stock

Reference: DB20-60K2-0000

Brand: Watlow Electric Mfg.

DB20-60K2-0000 Watlow Din-A-Mite B

Line Voltage 277~600Vac 3-Phase 2-Controlled Legs Control Voltage 100~240Vac Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 33A@77°F (see table below) Available with Shorted SCR Alarm Watlow DB20-60K2-S000

$363.00

Last items in stock
