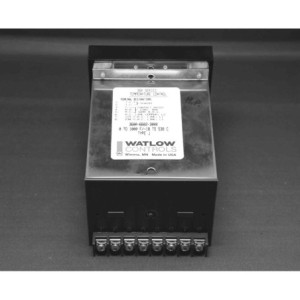

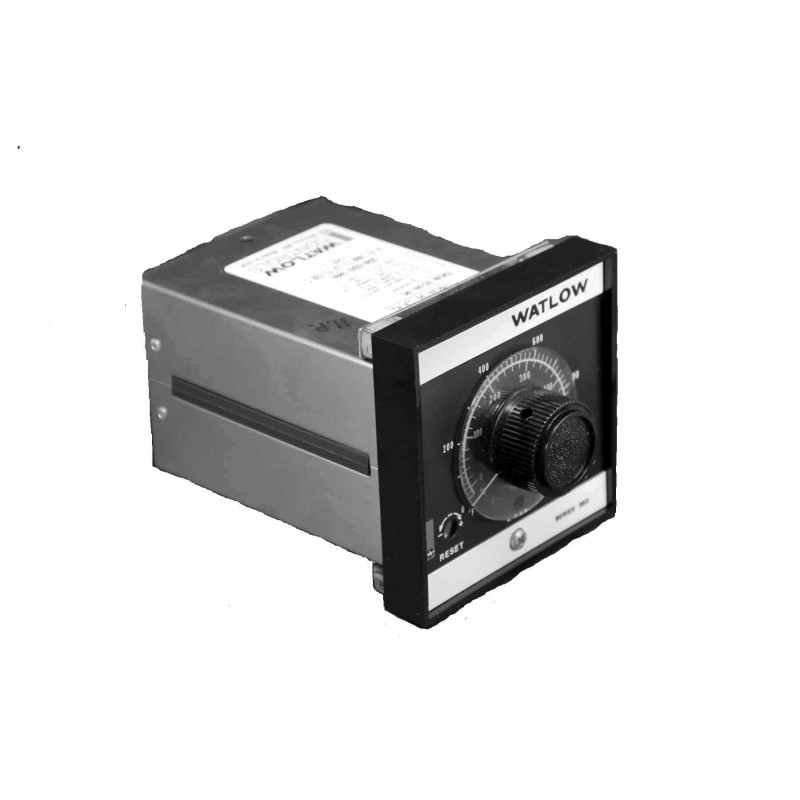

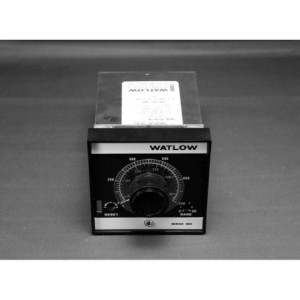

360A-6602-3000 1/4-DIN 1-Output

360A-6602-3000
  • "J" Thermocouple Input
  • One 5-Amp N/O or N/C Output Contacts
  • Analog Non-Indicating Temperature Controller
  • 5F to 50F Proportional Band Front Panel Dial Adjustable
  • Manual Reset 100% of Proportional Band Front Panel Adjustable
  • 2 to 20 Seconds internal Adjust Cycle Time
  • Dual Farenheit and Celcius Scales
$362.25
Quantity
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • Thermocouple Can Be Isolated or Grounded
  • Scale Span 0~1000-F and 0~540-C
  • Calibration Accuracy is +/- 1% of Span @77-F Ambient
  • UL Listed File# E43684, UL873
  • Operating Enironment Temperature 30~130-F Relative Humidity 0~90%
  • Suitable Alternate Digital Model Available PM4C1EA-AAAAAAA
Product Details
360A-6602-3000
0
1 Item
