Watlow Series 93 Replacement
  • Watlow Series 93 Replacement

93AA-1DA0-00RG 1/16-DIN 1-Output

PM6C1EA-BAAABAA
This is an obsolete 1/16 DIN temperature controller with a user selectable input via dip switch settings that accepts type J, K, T, N or S thermocouple, RTD or process input 4~20mA. 0~5vDC. It has one mech-relay 5A SPDT output that can be set for heating or cooling programable for PID or on/off control with ramp to set point capability.
Recommended replacement is  PM6C1EA-BAAABAA
$336.00
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

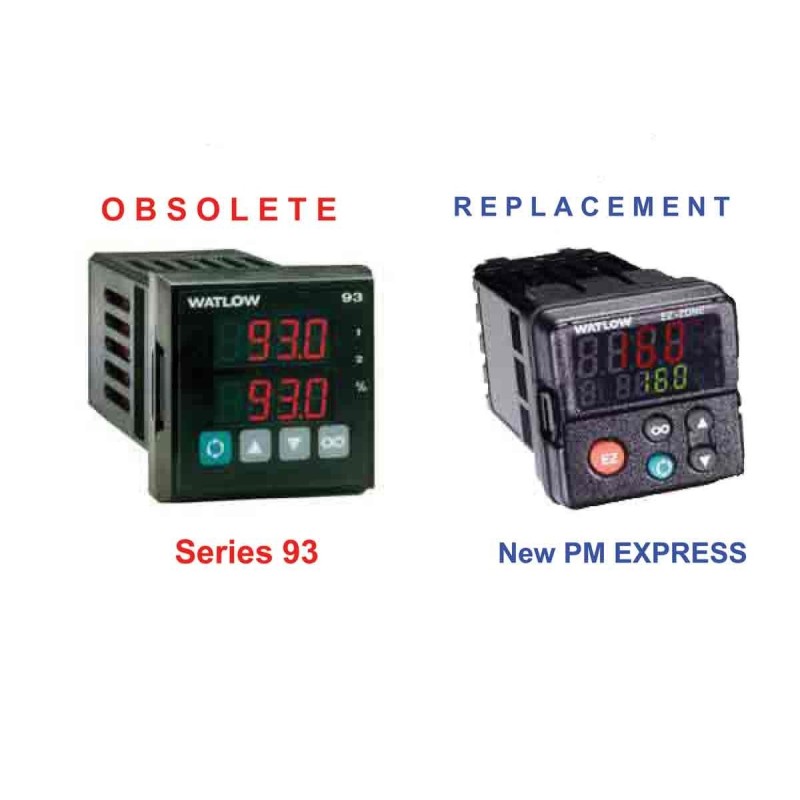

                                                          Basic Differences

                                      Series 93                                              PM Express

                          Input is dip switch selectable               Input is program selectable
                          No serial bus communications            Standard serial bus communication protocol

The model PM6C1EA-AAAABAA can be substituted as a direct retrofit to the following Series 93 Models:

                    93AA-1DA0-00RG           93AA-1DA0-00GR         93AA-1DA0-00RR       93AA-1DA0-00GG
                    93AB-1DA0-00RG           93AB-1DA0-00GR         93AB-1DA0-00RR       93AB-1DA0-00GG
                    93BB-1DA0-00RG           93BB-1DA0-00GR         93BB-1DA0-00RR       93BB-1DA0-00GG
                    93BA-1DA0-00RG           93BA-1DA0-00GR         93BA-1DA0-00RR       93BA-1DA0-00GG
Product Details
PM6C1EA-BAAABAA
0
4 other products in the same category:
101A-1626-0000 1-Output 101A-1626-0000 1-Output

Reference: 101A-1626-0000

Brand: Watlow Electric Mfg.

101A-1626-0000 1-Output

On ~ Off Analog Controller Input "T" Thermocouple Output SPST 3-Amp Mechanical Relay 120Vac Line Voltage Integral Set Point Front Dial Dual Scale 14°F ~ 212°F, -10°c ~ 100°c Panel Mount with .39"OD Hole in Center
$143.75
More 101A-1626-0000 1-Output
Last items in stock
93AA-1DD0-00GR 1/16-DIN 2-Outputs 93AA-1DD0-00GR 1/16-DIN 2-Outputs

Reference: PM6C1EJ-BAAABAA

Brand: Watlow Electric Mfg.

93AA-1DD0-00GR 1/16-DIN 2-Outputs

Dual Output Mech-Relays 5-Amp SPDT PID Auto Tune Panel Mount Controller Single Selectable Input: T/C, RTD, 4~20ma, 0~5Vd 100 ~ 240Vac Line Voltage Dual Four Digit Display Red/Green IP65 Rated For "How To" Videos and More Information Visit Google+ Plus
$368.00
More 93AA-1DD0-00GR 1/16-DIN 2-Outputs
Last items in stock
93BB-1CC0-00RG 1/16-DIN 2-Outputs 93BB-1CC0-00RG 1/16-DIN 2-Outputs

Reference: PM6C1KK-BAAABAA

Brand: Watlow Electric Mfg.

93AA-1KK0-00RG 1/16-DIN 2-Outputs

Two solid state 0.5A SP/ST relay outputs PID Auto Tune Panel Mount Controller Single User Selectable Input: T/C, RTD, 4~20ma, 0~5Vdc 100 ~ 240Vac Line Voltage Dual Four Digit Red/Green Display No nema 4x & CE Rating For "How To" Videos and More Information Visit Google+ Plus
$357.00
More 93AA-1KK0-00RG 1/16-DIN 2-Outputs
Last items in stock
Out-of-Stock Watlow Series 93 Replacement

Reference: PM6C1CK-BAAABAA

Brand: Watlow Electric Mfg.

93AA-1CK0-00RG 1/16-DIN 2-Output

This obsolete temperature controller had a selectable input via dip switch settings for thermocouples type J, K, T, N or S , RTD or process input 4~20mA. 0~5vDC. It had one switched DC non-isolated output and one 0.5A ssr output. User programable operation for heating or cooling with selectable control of PID or on/off with ramp to set point capability....
$330.00
More 93AA-1CK0-00RG 1/16-DIN 2-Output
Out-of-Stock
