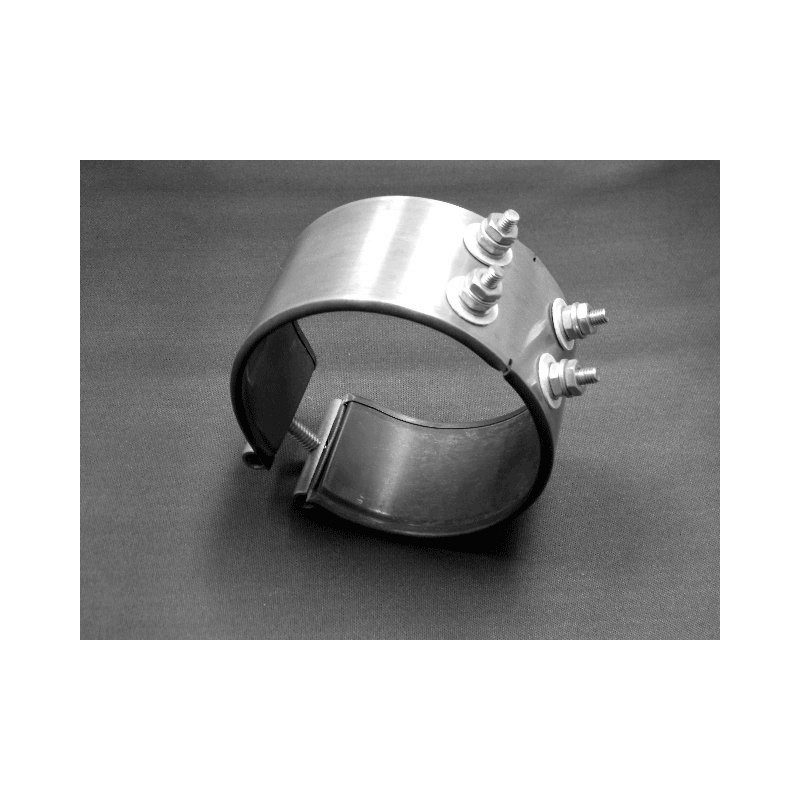

3-9/16" ID 2"W Band Heater 850w 230/460v

ME03K2AP-3002
  • 2-PC Mineral Insulated Expandable Band Heater
  • 3.562"id X 2"w 850w 460v
  • Each half is 425w 230v
  • Two Parallel Post Terminals at end of Each Half
  • Built In Mounting Clamp Bars
  • Stainless Steel Sheath
$156.00
Quantity
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

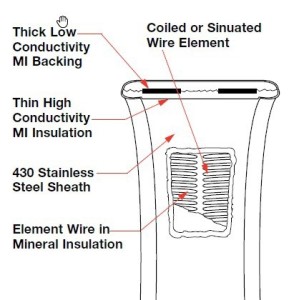

The mineral insulated (MI) band heater from Watlow®  is a high-performance heater that incorporates Watlow’s exclusive mineral insulation. This material offers much higher thermal conductivity than mica and hard ceramic insulators that are used in conventional heaters.  A thin layer of high thermal conductive MI material electrically insulates the element wire from the inside diameter of the heater sheath. A thicker, low thermal conductivity layer backs up the element wire directing the heat inward toward the part being heated. The result is efficient heat transfer, which lowers element wire temperatures and increases heater life.

The sheath is made of Stainless Steel and is folded inward of the band which resists contamination by overflow of plastic or other free flowing materials.

The built in clamp bars eliminate cumbersome clamping straps.

Watlow® is a registered trademark of Watlow Electric Manufacturing

Product Details
ME03K2AP-3002
0
2 Items
4 other products in the same category:
MB4A1JP2 MB4A1JP2

Reference: ME5A1JP10

Brand: Watlow Electric Mfg.

5" ID 1-1/2"W Nozzle Heater 580w 240/480v

2-PC in one expandable Stainless Steel Sheath Mineral Insulated Band Heater 580w 480v (40w² Inch) input 240v per piece Two sets of parallel 10-24 thread post terminals located opposite from gap Built In Mounting Clamp Bars with 1/4-20 bolts Similar to DME CMN00033 Similar to Cincinnati Milacron 326330 Ships 20-days after order entry
$159.10
More 5" ID 1-1/2"W Nozzle Heater 580w 240/480v
In stock
Out-of-Stock 1-1/2" ID 1-1/2"W NOZZLE HEATER 1-1/2" ID 1-1/2"W NOZZLE HEATER

Reference: MB1J1JN2-B12

Brand: Watlow Electric Mfg.

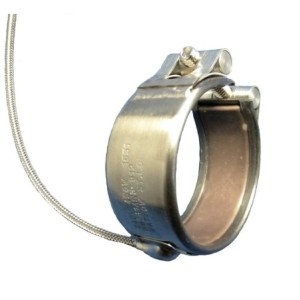

1-1/2" ID 1-1/2"W Nozzle Heater 450w 240v
