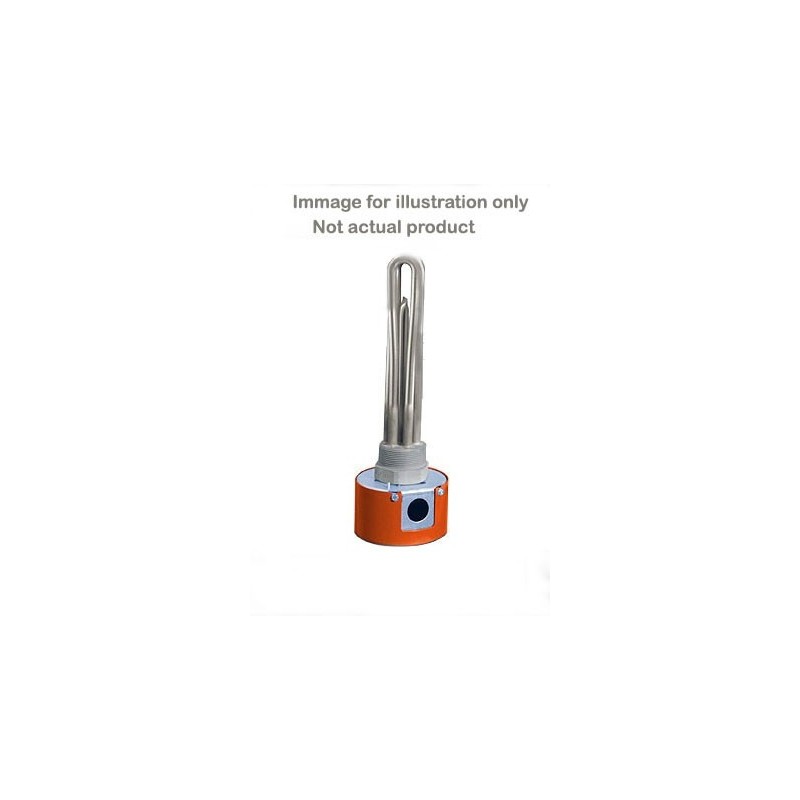

BLR710L5S5A screw plug immersion heater

Reference BLR710L5S5A

Brand Watlow Electric Mfg.

Comes wired 480v 3-phase delta in a general purpose wiring enclosure
It has (3) 316-ss passivated 10.625-inch immersed length
heating elements with epoxy resin end seals rated at 194ºF
and a thermowell sensor including a DPST 30A thermostat control
from 60ºF to 250ºF with a differential up to 12ºF.
The heater has no heat 2.625-inches from the 2-1/2"NPT screw plug
The approximate shipping weight is 10/lbs.

$2,512.00

Quantity

Last items in stock

In stock: 2 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

2-1/2"NPT Screw Plug Immersion Heater | BLR710L5S5A

Applications that require heating Deionized/Demineralized Water

Steam boilers and cooling systems
Manufacturing lead-acid batteries
Car washes
Electronics manufacturing
Medical and pharmaceutical manufacturing
Cleaning processes
Manufacturing cosmetics and personal care products

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the screw plug is 316SS.

Product Details

Reference BLR710L5S5A

In stock 2 Items

Data sheet

Thermostat:60°: 250°F range with up to 12° differential :0
