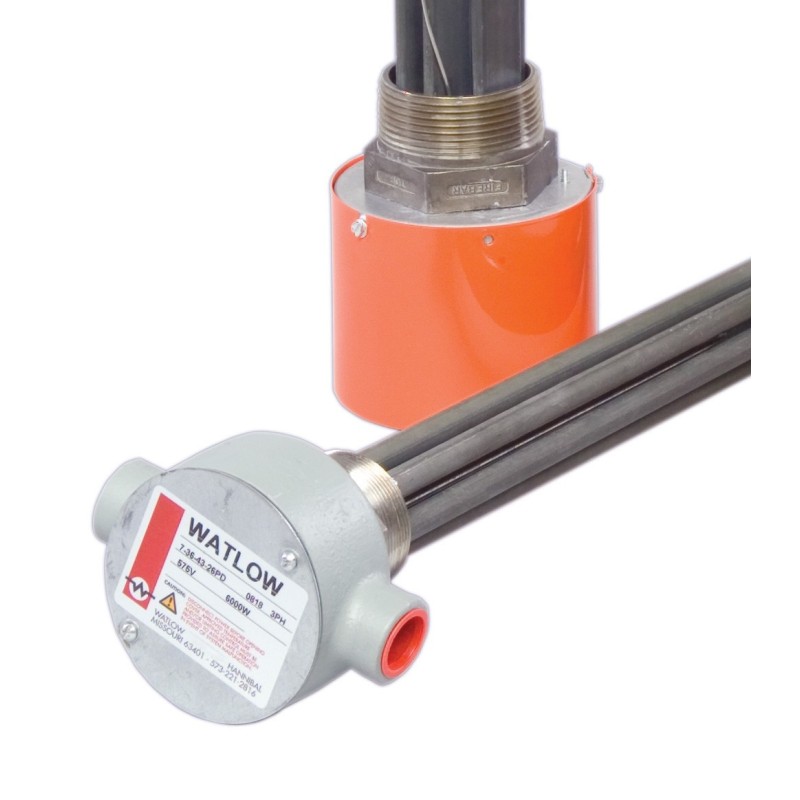

BLR77L1S screw plug immersion heater

Reference BLR77L1S

Brand Watlow Electric Mfg.

120V 1-phase 3.0kW
General Purpose Wiring Enclosure
2 1/2-inch NPT Screw Plug
WATROD elements
No heat the first 2.625 inches from the 2-1/2"npt screw plug
(3) 316-ss passivated 7.625-inch immersed length heating elements
Epoxy resin end seals rated at 194°F and a thermowell for sensor

$2,030.00

Ships 3-days after order entry

Quantity

Last items in stock

In stock: 2 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Screw Plug Immersion Heater | BLR77L1S

General Purpose Enclosure
Without thermostat

Applications that require heating Deionized/Demineralized Water

Steam boilers and cooling systems
Manufacturing lead-acid batteries
Car washes
Electronics manufacturing
Medical and Pharmaceutical manufacturing
Cleaning processes
Manufacturing Cosmetics and Personal Care Products

Features & Benefits of the Watlow® Immersion Heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The heating element hairpin bends are re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the screw plug is also 316SS.

Review the above tabs for Data Sheets, FAQ's & Attachments; more specifics and manuals.

Product Details

Reference BLR77L1S

In stock 2 Items

Attachments

Download

Screw Plug Immersion Heaters

Application: Deionized Demineralized Water

Download (2.61KB)
