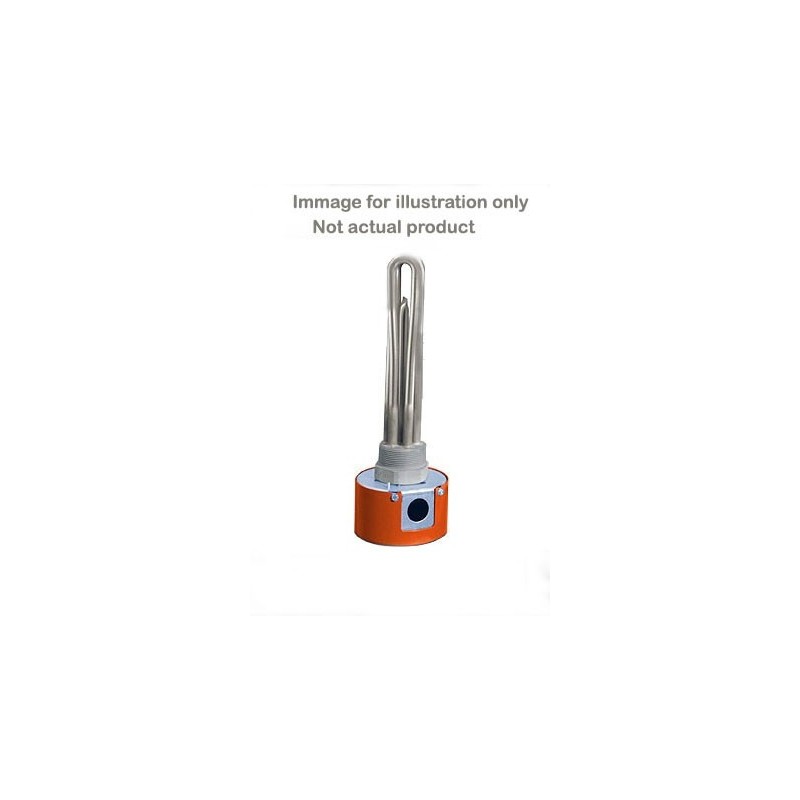

BLR77L5S7A screw plug immersion heater
- Comes with a 30-amp DPST 100-550°F thermostat with a differential setting up to 12°F
- in a general purpose enclosure and with
- (3) 316-ss passivated 7.625-inch immersed length heating elements
- with epoxy resin end seals rated at 194°F and a thermowell for sensor.
- The heater has no heat the first 2.625 inches from the screw plug and has
- an approximate ship weight is 7/lbs.
Ships 5-days after order entry.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
Features & Benefits of the Watlow® immersion heater
The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The WATROD™ hairpin bends are re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the elements have a support to ensure proper spacing to maximize the heater’s performance.
Product Details
BLR77L5S7A
1 Item
Data sheet
- Thermostat:100°
- 550°F range with up to 22° differential:0
- Comes with a 30-amp DPST 100-550°F thermostat with a differential setting up to 12°F
- in a general purpose enclosure and with
- (3) 316-ss passivated 7.625-inch immersed length heating elements
- with epoxy resin end seals rated at 194°F and a thermowell for sensor.
- The heater has no heat the first 2.625 inches from the screw plug and has
- an approximate ship weight is 7/lbs.
Ships 5-days after order entry.
