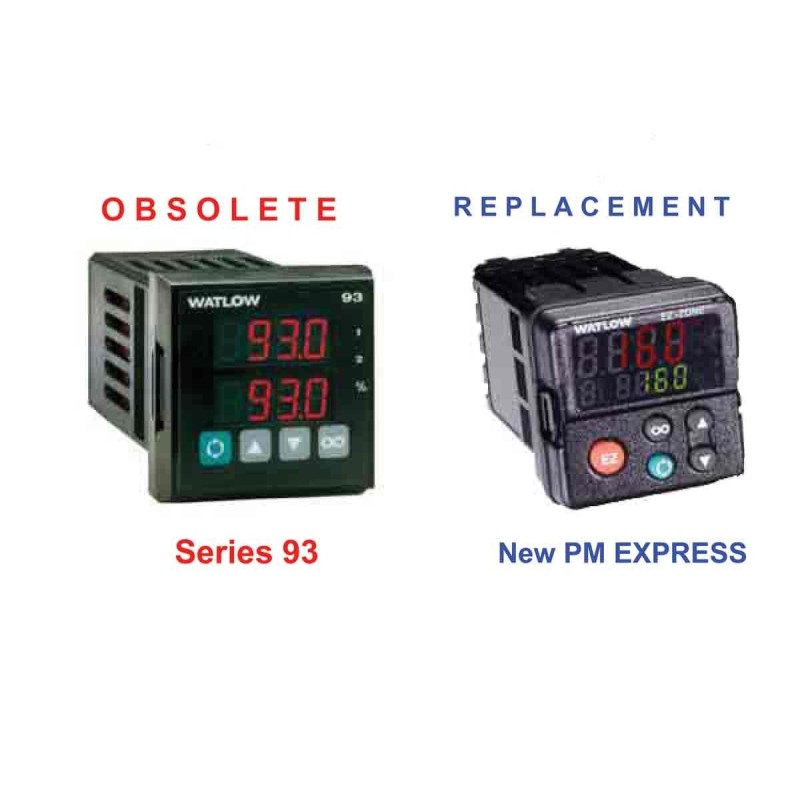

Watlow Series 93 Replacement
  • Watlow Series 93 Replacement

93AA-1CK0-00RG 1/16-DIN 2-Output

PM6C1CK-BAAABAA
This obsolete temperature controller had a selectable input via dip switch settings for thermocouples type J, K, T, N or S , RTD or process input 4~20mA. 0~5vDC. It had one switched DC non-isolated output and one 0.5A ssr output. User programable operation for heating or cooling with selectable control of PID or on/off with ramp to set point capability.
Use   Ez-Zone® PM Express
$330.00
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

                                                          Basic Differences

                                      Series 93                                              PM Express

                          Input is dip switch selectable               Input is program selectable
                          No serial bus communications            Standard serial bus communication protocol

 The model PM6C1CK-AAAABAA can be substituted as a direct retrofit to the following Series 93 Models:

                    93AA-1CK0-00RG           93AA-1CK0-00GR         93AA-1CK0-00RR       93AA-1CK0-00GG
                    93AB-1CK0-00RG           93AB-1CK0-00GR         93AB-1CK0-00RR       93AB-1CK0-00GG
                    93BB-1CK0-00RG           93BB-1CK0-00GR         93BB-1CK0-00RR       93BB-1CK0-00GG
                    93BA-1CK0-00RG           93BA-1CK0-00GR         93BA-1CK0-00RR       93BA-1CK0-00GG
Product Details
PM6C1CK-BAAABAA
0
