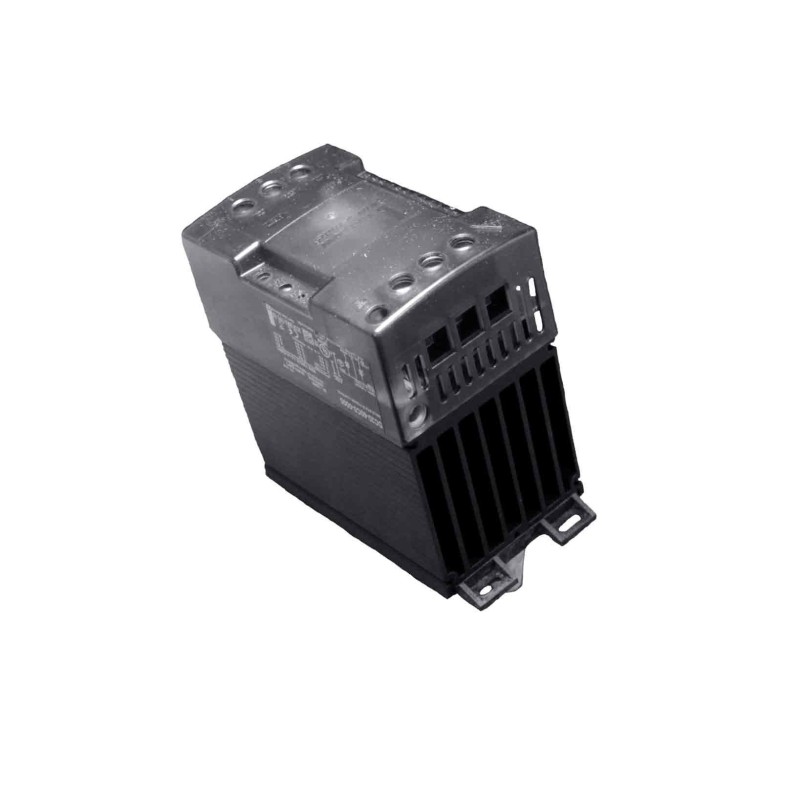

DC30-60F0-S000 Watlow Din-A-Mite C

DC30-60F0-S000
  • Line Voltage 277~600Vac 3-Phase 3-Controlled Legs
  • 4~20mA Proportional Control
  • Din Rail Mount or Flat Panel Mounting
  • Back to Back SCR Design
  • Zero Cross Switching Up-To 35A@104°F (see table below)
  • With Shorted SCR Alarm Protection
$767.00
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Din-A-Mite C Current De-Ratings Shown Are Based On Natural Convection

   176°F....16-Amp    158°F....21-Amp    140°F....25-Amp    122°F....30-Amp    104°F....35-Amp    86°F......40-Amp

Din-A-Mite C  Operator Interface

  • Control input and indication light
  • Alarm output and indication light
  • Current limit indication LED



Din-A-Mite C  Operating Environment

  • 0 to 90% non-condensing relative humidity
  • Storage temperature: -40°F to 185°F(-40°c to 85°c)
  • Operating temperature: -29°F to 176°F(-34°c to 80°c)
  • Insulation tested to 3,000 meters



Din-A-Mite C  Terminals

  • Control input terminals: compression 24 to 16 AWG max torque 4.4 in/lb
  • Line & Load terminals: compression 14 to 4 AWG max torque 24 in/lb



Din-A-Mite C  Mounting

  • DIN-Rail 35mm X 7.5mm DIN EN 50022
  • Back-Panel four mounting holes #6 to #8 fastener size
  • Through-Wall



Din-A-Mite C  Agency Approvals

  • CE with proper filter: 204/108/EC electromagnetic compatibility directive EN 61326-1: industrial immunity Class A emissions not suitable for Class B environments, 2006/95/EC low voltage directive EN50178 safety requirements installation category III, pollution degree 2.
  • UL-50 type 4x enclosure, Class 1, Div.2 per ANSI/ISA 12.12.01, through wall heat sink models T4 file 184390
  • UL-508 listed and C-UL file E73741
  • Shock and vibration tested to IEC 60068-2-32
  • Vibration tested to IEC 60068-2-6
