DD10-48F0-S000 Watlow Din-A-Mite D
  • DD10-48F0-S000 Watlow Din-A-Mite D

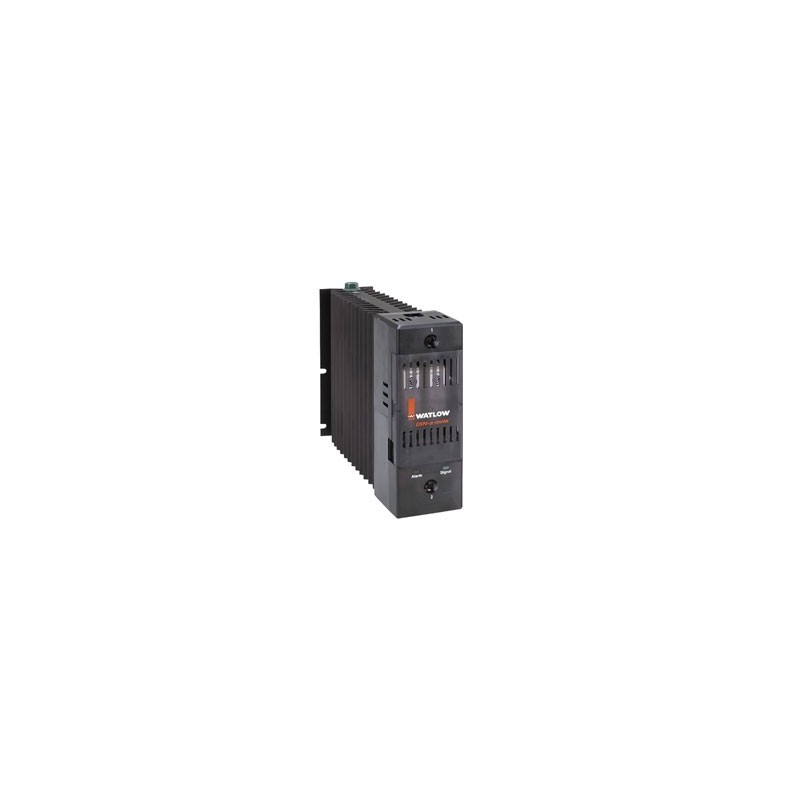

DD10-48F0-S000 Watlow Din-A-Mite D

DD10-48F0-S000
  • Line Voltage 277~480Vac 1-Phase
  • Proportional Control Input 4 ~ 20mA-dc
  • Back to Back SCR Design
  • With Alarm for Shorted SCR
  • Zero Cross Switching Up-To 100A@86°F (see table below)
  • 200Ka Short Circuit Current Rating with proper fusing

View attachments tab below for literature and instructions.
