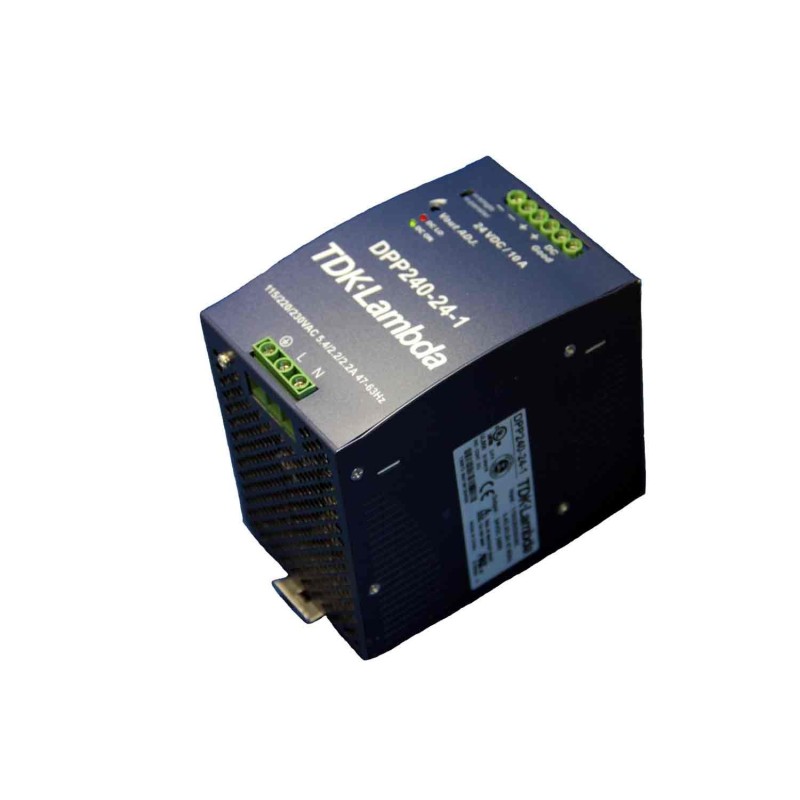

240W 24Vdc 10A Power Supply

Reference DPP240-24-1

Brand Watlow Electric Mfg.

Input Voltage Range 93~132Vac / 186~264Vac
Output Voltage Can Be Adjusted From The Front Panel
Adjustable Output Voltage Range 22.5 ~ 28.5Vdc
Red & Green LED Indicators Provide Output Status
Operating Temperature -25° ~ +71°c
3.27"W x 4.92"L x 4.59"H 2.5/Lbs. Din Rail Mount

$202.55

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Ideal For Shallow Enclosure Installation

Load Regulation Is Less Than 1% From No Load To Full Load
Ripple & Noise Is Below 100mV
Convection Cooled
Can Operate at 20 ~ 95% Relative Humidity
Typical Efficiency 89%
Rohs Compliant

Product Details

Reference DPP240-24-1

EAN13 0

In stock 1 Item

Attachments

Download

Installation Manual DPP240

Download (2.61KB)
