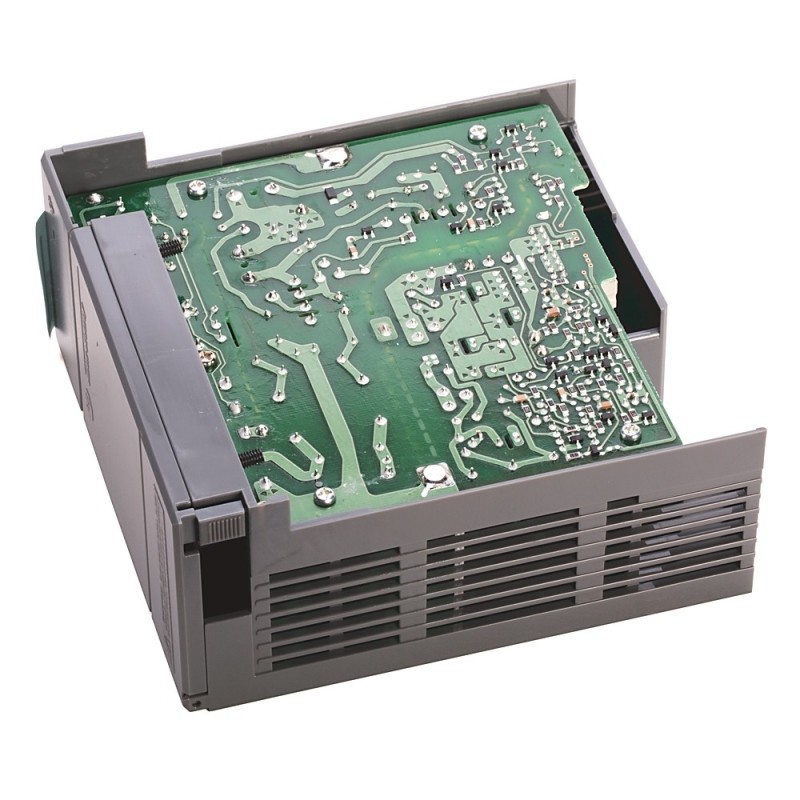

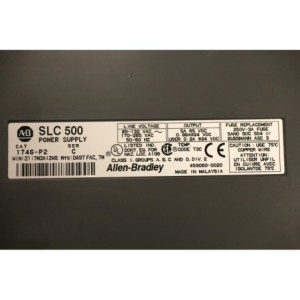

Allen Bradley 1746-P2
  • Allen Bradley 1746-P2
  • Power Supply 1746-P2
  • Allen Bradley 1746P2

Allen Bradley 1746-P2

1746-P2

Rack Mount Power Supply 5A 120/240Vac

  • This product is NEW in it's original packaging
  • The original manufacturer's warranty does not apply
  • MROCRIB is NOT an authorized distributor for Allen-Bradley products
  • Allen-Bradley and SLC500 are trademarks of Rockwell Automation, Inc.
  • Installation instructions and technical literature are available from the manufacturer's website.

$1,200.00
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
Line Voltage: 85-132/170-265V ac, 47-63 Hz
Typical Line Power Requirement: 180va
Maximum Inrush Current: 20A
Internal Current Capacity: 5A at 5Vdc  0.96A at 24Vdc
Fuse Protection:  Fast Acting 3A 250V 1/4"x 1-1/4" Glass Fuse
24Vdc User Power Current Capacity:  200mA
24Vdc User Power Volt Range:  18~30Vdc
Maximum user-supplied overcurrent required protection: 15A time delay
Ambient operating temperature: 0ºC to +60ºC (+32ºF to +140ºF)
Isolation between input terminals and backplane:  1800Vac RMS for 1s
Product Details
1746-P2

Specific References

EAN13
1066246808832
