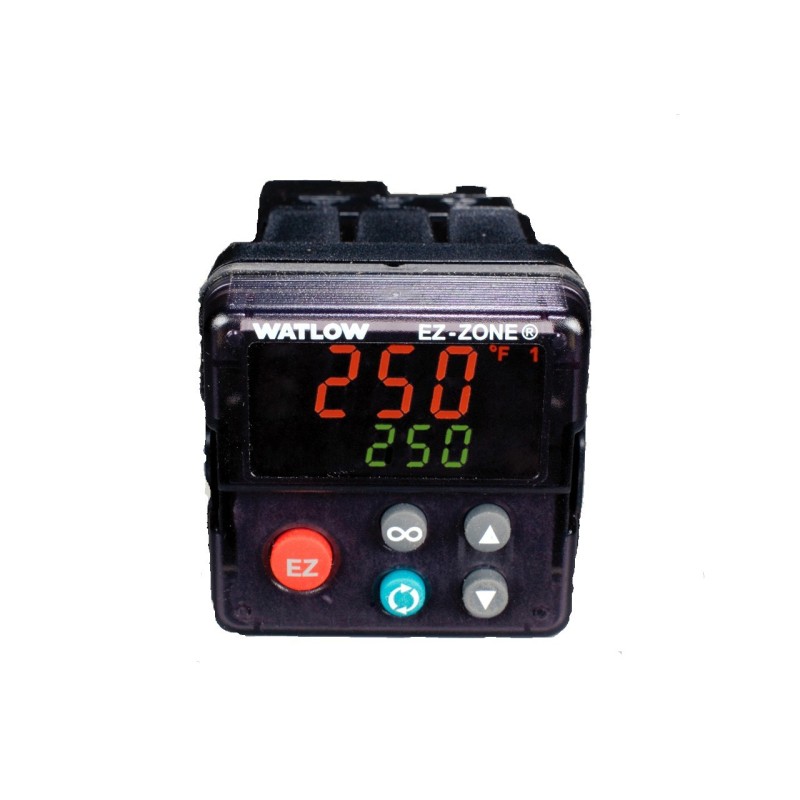

PM6C3FC-AAAAAAA 1/16-DIN 2-Outputs

WATLOW EZ-ZONE® PM6C3FC-AAAAAAA

• This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
• The serial communications when used with the free WATLOW software, saves time of controller setup.
• Replacement for Watlow 965A-3KK1-00RR
• Also available in 100 ~ 240VAC Model PM6C1FC-AAAAAAA

Updated EZ-ZONE® Features

• These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C3FC-BAAAAAA
• Watlow's new version of the EZ-ZONE® is the PLUS® model - PM6C3FC-BAAAPWP
• Available with a basic simplified menu for thermal processes - PM6C3FC-BAAAHWP

Universal Input

• This can be a thermocouple grounded or ungrounded
• It can be an RTD 2-wire or 3-wire
• It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
