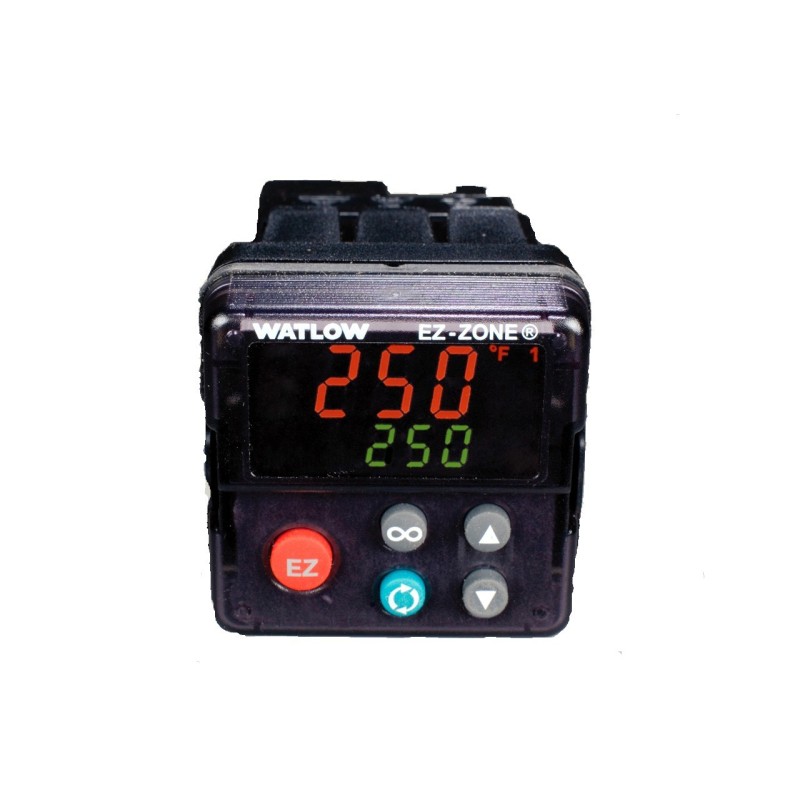

  • PM6C3EA-AAAABAA 1/16-DIN 1-Output
  • PM6C3EA-AAAABAA Front View

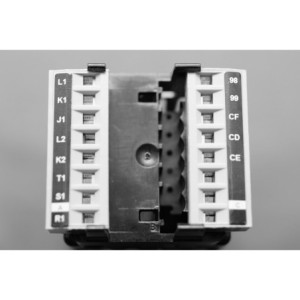

  • PM6C3EA-AAAABAA Rear View

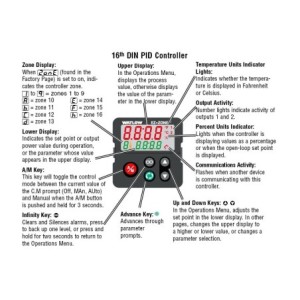

  • PM6C3EA-AAAABAA Enhanced Menu Options

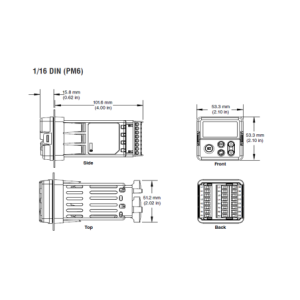

  • PM6C3EA-AAAABAA Dimensions

PM6C3EA-AAAABAA 1/16-DIN 1-Output

PM6C3EA-AAAABAA
  • One Universal Input
  • Output #1 (E) - Mechanical Relay 5A, Form C
  • Operating Voltage 20 to 28VAC or 12 to 40VDC
  • Auto-Tune PID Controller
  • PM Express Set-Up Menu
  • For Basic Heating/Cooling Applications
$451.00
Quantity
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

WATLOW EZ-ZONE® PM6C3EA-AAAABAA

  • This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
  • The serial communications when used with the free WATLOW software, saves time of controller setup.
  • Also available in 100 ~ 240VAC Model PM6C1EA-AAAABAA

Updated EZ-ZONE® Features

  • These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C3EA-BAAABAA
  • Watlow's new version of the EZ-ZONE® EXPRESS is the LEGACY® model - PM6C3EA-BAAAHWP
  • Available with a more extensive menu EZ-ZONE® PLUS® thermal process - PM6C3EA-BAAAPWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Direct replacement for Watlow Series 93 & Series 96

This unit replaces obsolete models: 93AA-1DA1-00AA, 93AA-1DA1-00AB, 93AA-1DA1-00AC, 93AA-1DA1-00AD, 93AA-1DA1-00GG, 93AA-1DA1-00GR, 93AA-1DA1-00RG, 93AA-1DA1-00RR, 93AB-1DA1-00AA, 93AB-1DA1-00AB, 93AB-1DA1-00AC, 93AB-1DA1-00AD, 93AB-1DA1-00GG, 93AB-1DA1-00GR, 93AB-1DA1-00RG, 93AB-1DA1-00RR, 93BA-1DA1-00AA, 93BA-1DA1-00AB, 93BA-1DA1-00AC, 93BA-1DA1-00AD, 93BA-1DA1-00GG, 93BA-1DA1-00GR, 93BA-1DA1-00RG, 93BA-1DA1-00RR, 93BB-1DA1-00AA, 93BB-1DA1-00AB, 93BB-1DA1-00AC, 93BB-1DA1-00AD, 93BB-1DA1-00GG, 93BB-1DA1-00GR, 93BB-1DA1-00RG, 93BB-1DA1-00RR, 965A-1DA1-0000, 965A-1DA1-00AM, 965A-2DA1-0000, 965A-2DA1-00AM, 965A-3DA1-0000, 965A-3DA1-00AM, 965A-3DA1-00BH, 965A-3DA1-00BR, 965A-3DA1-00EL, 965A-3DA1-00GG, 965A-3DA1-00GR, 965A-3DA1-00RG, 965A-3DA1-0200, 965A-3DA1-02AM, 965A-3DA1-02BH, 965A-3DA1-02BR, 965A-3DA1-02EL, 965A-3DA1-02GG, 965A-3DA1-02GR, 965A-3DA1-02RG, 965A-3DA1-0300, 965A-3DA1-03AM, 965A-3DA1-03BH, 965A-3DA1-03BR, 965A-3DA1-03EL, 965A-3DA1-03GG, 965A-3DA1-03GR, 965A-3DA1-03RG, 965A-3DA1-0400, 965A-3DA1-04AM, 965A-3DA1-04BH, 965A-3DA1-04BR, 965A-3DA1-04EL, 965A-3DA1-04GG, 965A-3DA1-04GR, 965A-3DA1-04RG

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
