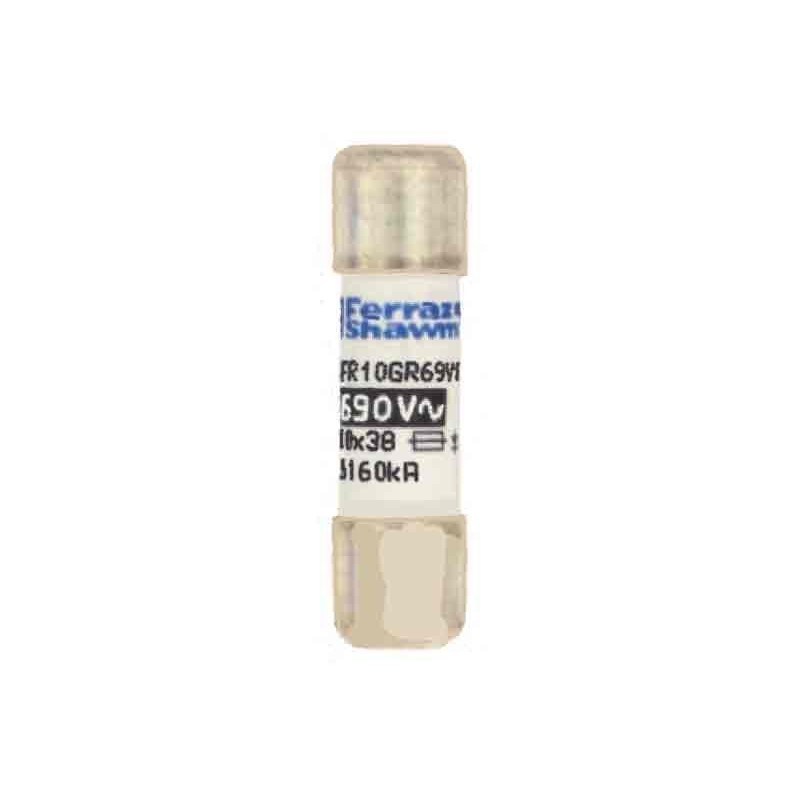

X1014573 Mersen 5A 700Vac Fuse

Reference FR10GR69V5

Brand Mersen

Primarily Used For Semiconductor Protection
13/32"OD x 1-1/2"L (10mm x 38mm) Rated 700Vac 500Vdc
Inturrupting Rating 160Ka@690Vac
I²T Clearing Rating 30A²Seconds @690Vac
I²T Clearing Rating 20A²Seconds @480Vac
I²T Clearing Rating 12A²Seconds @240Vac
I²T Clearing Rating 10A²Seconds @120Vac

$18.95

Quantity

In stock: 5 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

These Semiconductor Protecting Fuses Are Extremely Fast Acting With Current Limiting And Excellent Cycling Ability. Some Recommended Applications are Solid State Relays, SCR Controllers, Motor Drives, Small Inverters And Equipment Requiring The Highest Degree Of Protection. Similar To Bussman FWC type Fuses.

Can Be Used With Ferraz Shawmut Ultrasafe Fuse Holders.

Product Details

Reference FR10GR69V5

In stock 5 Items

Specific References

UPC: 782001942738

Attachments

Download

Protistor Semiconductor Catalog

Download (2.61KB)
