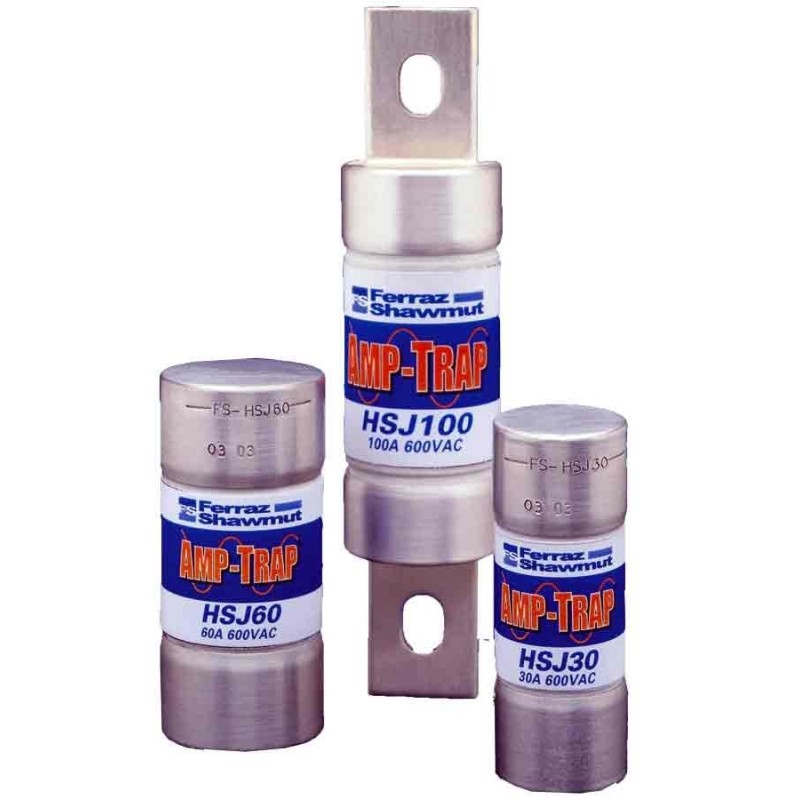

HSJ80 Shawmut 80A 600Vac 500Vdc High Speed Fuse

Designed For Solid State Motor Starters (Soft Starters) Low I2T For Protections Of Diodes, SCR's, GTO's, And Solid State Relays Excellent Cycling Ability For Frequent On / Off Devices Interrupt Amp Rating 200K@600Vac 100K@500Vdc Can Be Used In Combination To Provide Branch Circuit Protection Per National Electric Code And Semiconductor Devices At The...

Class CC Rated 300Vdc and 600Vac Rated Inturrupting Capacity 200Ka@600Vac 100Ka@300Vdc Rejection Design Prevents Substitution By Lesser Rated Fuses Can Be Used With Ultrasafe Type UCC Fuse Holders Ideally Suited For High Inrush Currents of Control Transformers, and Solenoids Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses...

Primarily Used For Control Circuits, Control Transformers, And Small Motors 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interrupting Rating Fast Acting On Short Circuits Moderate Time-Delay On Inrush Currents Also Available Up To 15Amps Can Be Used With UltraSafe Fuse Holders UPC 78200190137

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200174317
