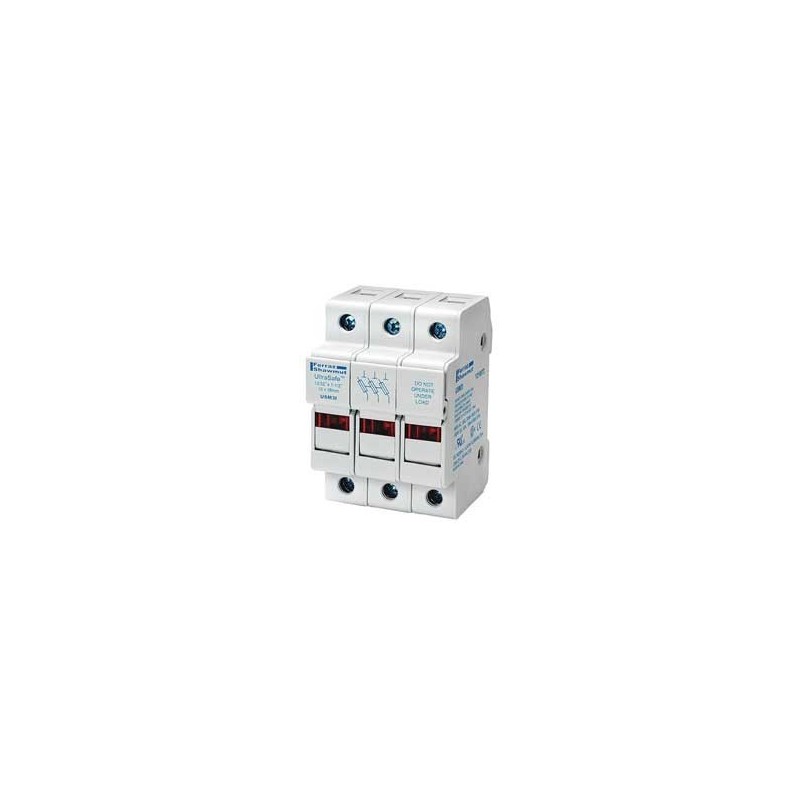

30A 3P 600V ac~dc Ultrasafe Midget Fuse Holder

Reference USM3I

Brand Mersen

Fuse Size 1-1/2"L x 13/32"Dia (10x38mm)
Finger Safe Under IEC and DIN Standards to IP20
Blown Fuse Indicator
Rated 600V ac~dc
Din Rail Mount
Operating Temperature -40°c ~ 185°F
Terminals Combination Phillips/Slotted
Terminal Wire Range 14/awg ~ 6/awg
Ultrasafe Is a Trade Mark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuse Inc.
UPC 78200183001

$58.35

Quantity

In stock: 10 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

FOR USE WITH THE FOLLOWING MERSEN FUSES FORMALLY KNOWN AS FERRAZ-SHAWMUT, AND GOULD FUSES:

ATQ 12 Second Time Delay @200% Of Amp Rating, 500Vac From 1/10A UpTo 30A
ATM Fast Acting 100Kaic, Rated Both AC/DC 600V From 1/10A UpTo 30A
A6Y-2B Fast Acting On Short Circuits With Moderate Time-Delay On Inrush Circuits
A25Z-2 Highly Current-Limiting For Semi-Conductor Protection From 1A ~ 30A @300Vac
TRM 12 Second Time Delay @200% Of Amp Rating, 250Vac From 1/10A UpTo 30A
OTM General Purpose Rated 250Vac From 1A UpTo 30A
A60Q-2 Rated 600V-ac/dc For Semi-Conductor Protection From 5A UpTo 40A
DCT Rated 100Kaic@750Vac 50Kaic@1000Vdc PhotoVoltaic Fuse From 5A UpTo 30A
HP6M Rated 10Kaic@600Vdc PhotoVoltaic Fuse From 1A UpTo 30A
HP10M Rated 10Kaic@1000Vdc PhotoVoltaic Fuse From 1A UpTo 20A

Product Details

Reference USM3I

In stock 10 Items

Specific References

UPC: 78200183001

Attachments

Download

Mersen USM Specifications

Download (2.61KB)
