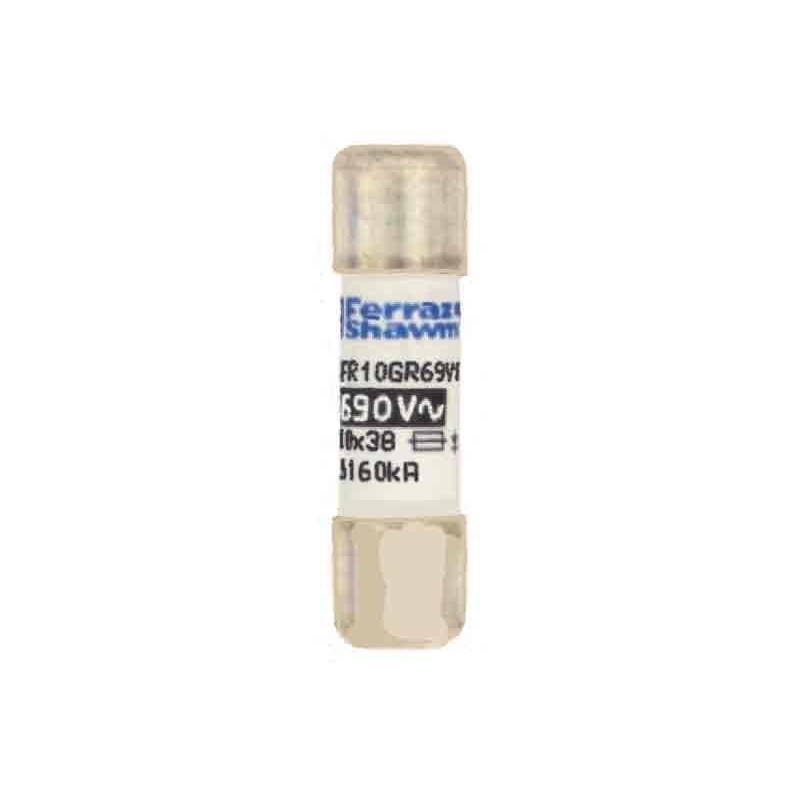

Y1014574 Mersen 6A 700Vac Fuse

Reference FR10GR69V6

Brand Mersen

Primarily Used For Semiconductor Protection
13/32"OD x 1-1/2"L (10mm x 38mm) Rated 700Vac 500Vdc
Inturrupting Rating 160Ka@690Vac
I²T Clearing Rating 40A²Seconds @690Vac
I²T Clearing Rating 27A²Seconds @480Vac
I²T Clearing Rating 16A²Seconds @240Vac
I²T Clearing Rating 13A²Seconds @120Vac

$18.95

Quantity

In stock: 10 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

These Semiconductor Protecting Fuses Are Extremely Fast Acting With Current Limiting And Excellent Cycling Ability. Some Recommended Applications are Solid State Relays, SCR Controllers, Motor Drives, Small Inverters And Equipment Requiring The Highest Degree Of Protection. Similar To Bussman FWC-6A10F

Can Be Used With Ferraz Shawmut Ultrasafe Fuse Holders.

Product Details

Reference FR10GR69V6

In stock 10 Items

Specific References

UPC: 782001942739

Attachments

Download

Protistor Semiconductor Catalog

Download (2.61KB)
