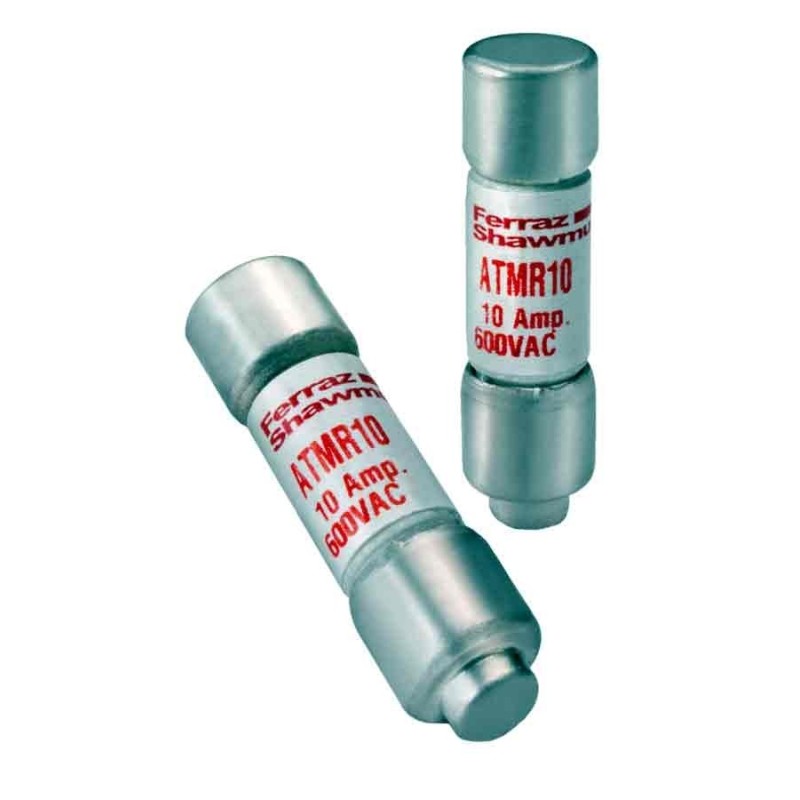

ATMR1/10 Shawmut 1/10-A 600V ac~dc Amp-Trap Fuse
  • ATMR1/10 Shawmut 1/10-A 600V ac~dc Amp-Trap Fuse
  • ATMR1/10 Shawmut 1/10-A 600V ac~dc Amp-Trap Fuse

ATMR5 Shawmut 5A 600V ac~dc Amp-Trap Fuse

ATMR5
Mersen
  • Class CC IEC Type 2 No Damage Protection Fuse
  • Rejection Design Prevents Substitution By Lesser Rated Fuses
  • Rated Inturrupting Capacity 200Ka@600Vac 100Ka@600Vdc
  • Fast-Acting And Very Current-Limiting
  • Can Be Used With Ultrasafe Type UCC Fuse Holders
  • Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses
  • UPC 78200190389
$17.52
Quantity
140 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

THE FOLLOWING ULTRASAFE MERSEN FUSE HOLDERS CAN BE USED:

  • USCC1  One Pole
  • USCC1i One Pole With Blown Fuse Indicator
  • USCC2  Two Pole
  • USCC2i Two Pole With Blown Fuse Indicator
  • USCC3  Three Pole
  • USCC3i Three Pole With Blown Fuse Indicator
  • USCC4  Four Pole
  • USCC4i Four Pole With Blown Fuse Indicator
Product Details
ATMR5
0
140 Items
