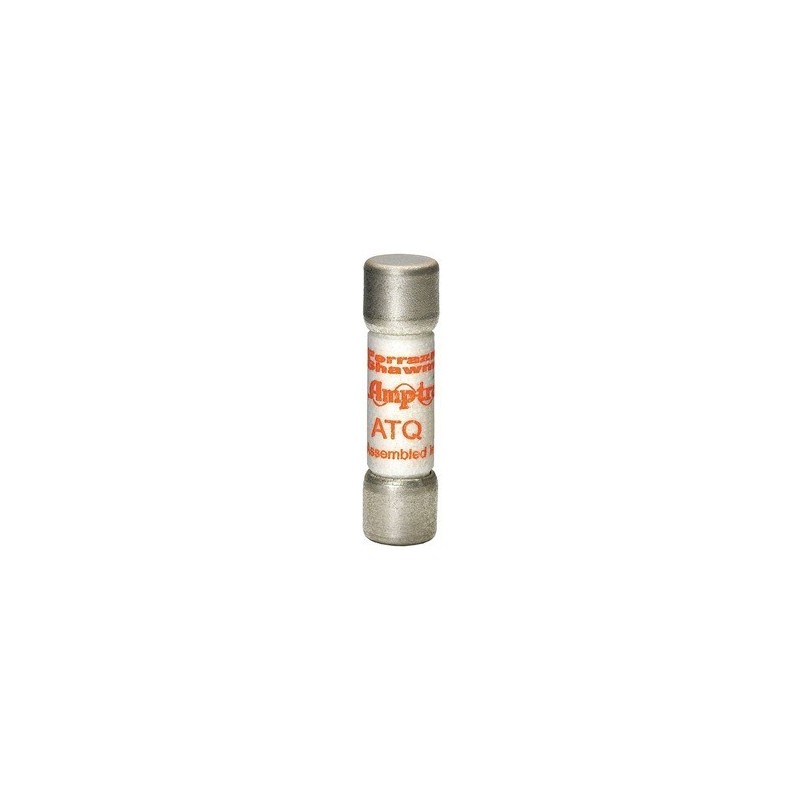

ATQ6 Shawmut Fuse 6A 500Vac Time-Delay

Designed For Solid State Motor Starters (Soft Starters) Low I2T For Protections Of Diodes, SCR's, GTO's, And Solid State Relays Excellent Cycling Ability For Frequent On / Off Devices Interrupt Amp Rating 200K@600Vac 100K@500Vdc Can Be Used In Combination To Provide Branch Circuit Protection Per National Electric Code And Semiconductor Devices At The...

Class CC IEC Type 2 No Damage Protection Fuse Rejection Design Prevents Substitution By Lesser Rated Fuses  Rated Inturrupting Capacity 200Ka@600Vac 100Ka@600Vdc Fast-Acting And Very Current-Limiting Can Be Used With Ultrasafe Type UCC Fuse Holders Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses UPC 78200190451

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200190353

Class J Fast Acting And Current Limiting For Low Peak Let-Thru Current Rated Inturrpting Capacity 200Ka@600Vac 100Ka@300Vdc Unique Physical Dimensions Provides Protection From Substitution Protection For Capacitors, Load Centers, Circuit Breakers, And Feeder Circuits UPC 78200196028
