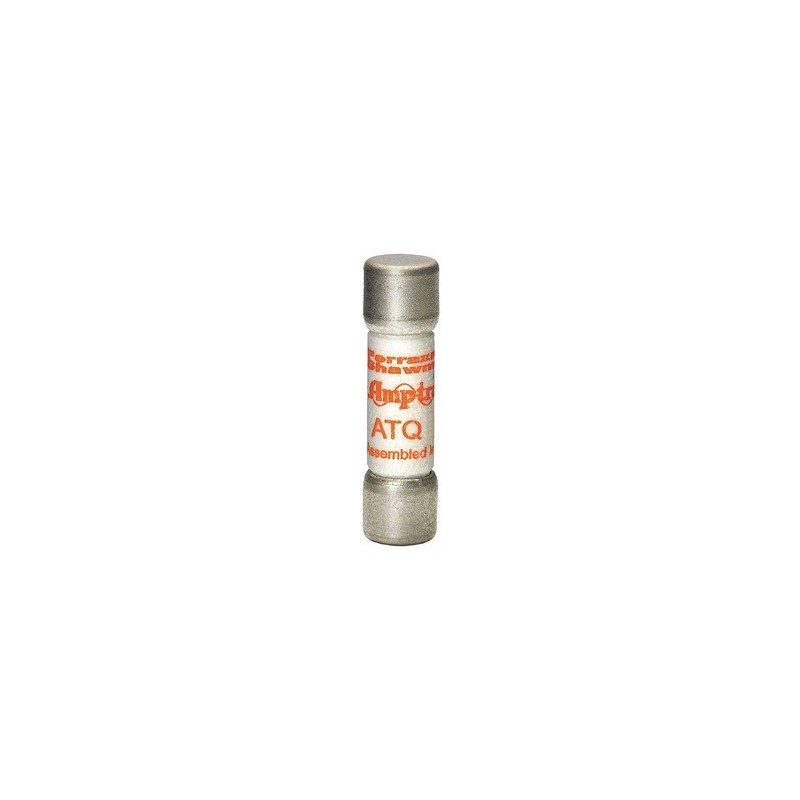

ATQ1-6/10 Shawmut Fuse 1-6/10-A 500Vac Time-Delay

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L  (10mm x 38mm) Rated 700Vac 500Vdc Inturrupting Rating 160Ka@690Vac I²T Clearing Rating 40A²Seconds @690Vac I²T Clearing Rating 27A²Seconds @480Vac I²T Clearing Rating 16A²Seconds @240Vac I²T Clearing Rating 13A²Seconds @120Vac

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200190604

Designed For Solid State Motor Starters (Soft Starters) Low I2T For Protections Of Diodes, SCR's, GTO's, And Solid State Relays Excellent Cycling Ability For Frequent On / Off Devices Interrupt Amp Rating 200K@600Vac 100K@500Vdc Can Be Used In Combination To Provide Branch Circuit Protection Per National Electric Code And Semiconductor Devices At The...

Class J Fast Acting And Current Limiting For Low Peak Let-Thru Current Rated Inturrpting Capacity 200Ka@600Vac 100Ka@300Vdc Unique Physical Dimensions Provides Protection From Substitution Protection For Capacitors, Load Centers, Circuit Breakers, And Feeder Circuits UPC 78200196034
