TRM1/10 Shawmut Fuse 1/10-A 250Vac Time-Delay
  • TRM1/10 Shawmut Fuse 1/10-A 250Vac Time-Delay

TRM2-8/10 Shawmut Fuse 2-8/10-A 250Vac Time-Delay

TRM2-8/10
Mersen
  • Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating
  • Ideal For Circuits With High Inrush Currents
  • Supplemental Protection For Solenoids, Motors, And Transformer Circuits
  • 13/32"OD x 1-1/2"L (10mm x 38mm)
  • 10K Amp Interupting Rating
  • Available in Amerages Up To 30A
  • Can Be Used With UltraSafe Fuse Holders
  • UPC 78200174335
$12.34
Quantity
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

THE FOLLOWING ULTRA-SAFE MERSEN FUSE HOLDERS CAN BE USED:

  • USM1   One Pole
  • USM1I One Pole With Blown Fuse Indicator
  • USM2  Two Pole
  • USM2I Two Pole With Blown Fuse Indicator
  • USM3   Three Pole
  • USM3I Three Pole With Blown Fuse Indicator
Product Details
TRM2-8/10
0
10 Items
4 other products in the same category:
ATMR1/10 Shawmut 1/10-A 600V ac~dc Amp-Trap Fuse ATMR1/10 Shawmut 1/10-A 600V ac~dc Amp-Trap Fuse

Reference: ATMR30

Brand: Mersen

ATMR30 Shawmut 30A 600V ac~dc Amp-Trap Fuse

Class CC IEC Type 2 No Damage Protection Fuse Rejection Design Prevents Substitution By Lesser Rated Fuses  Rated Inturrupting Capacity 200Ka@600Vac 100Ka@600Vdc Fast-Acting And Very Current-Limiting Can Be Used With Ultrasafe Type UCC Fuse Holders Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses UPC 78200190484
$17.52
More ATMR30 Shawmut 30A 600V ac~dc Amp-Trap Fuse
In stock
TRM1/10 Shawmut Fuse 1/10-A 250Vac Time-Delay

Reference: TRM15/100

Brand: Mersen

TRM15/100 Shawmut Fuse 15/100-A 250Vac Time-Delay

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200174303
$13.38
More TRM15/100 Shawmut Fuse 15/100-A 250Vac Time-Delay
In stock

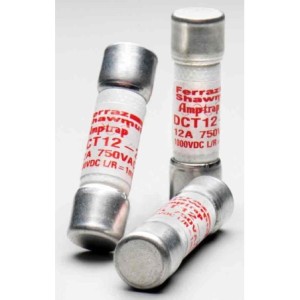

DCT5-2 Shawmut Fuse 5A 750Vac 1000Vdc

Reference: DCT15-2

Brand: Mersen

DCT15-2 Shawmut Fuse 15A 750Vac 1000Vdc

Designed For Protection Of Photovoltaic Cells And Multimeter Instruments 100K Amp Inturrpting Rating At 750Vac And 50K Amp At 1000Vdc 13/32"od 1-1/2"L (10mm X 38mm) Available Up To 30A Can Be Used With Ultrasafe Fuse Holders UPC 78200135281
$37.30
More DCT15-2 Shawmut Fuse 15A 750Vac 1000Vdc
In stock

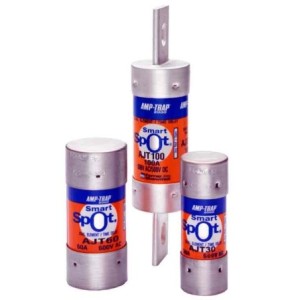

AJT1 Shawmut 1A 600Vac 500Vdc Time-Delay Fuse AJT1 Shawmut 1A 600Vac 500Vdc Time-Delay Fuse

Reference: AJT12

Brand: Mersen

AJT12 Shawmut 12A 600Vac 500Vdc Time-Delay Fuse

Amp-Trap Class J Time Delay Fuse SmartSpot Indicator Provides Visual For Blown Fuse Most Current-Limiting UL Class Fuse IEC Type 2 No Damage Protection For All Types Of Loads Interrupt Amp Rating 200K@600Vac 100K@500Vdc High Grade Silica Filler Ensures Fast Arc Quenching Can Be Used With IP20 Rated Ultrasafe Fuse Holders UPC 78200196310
$29.25
More AJT12 Shawmut 12A 600Vac 500Vdc Time-Delay Fuse
In stock
