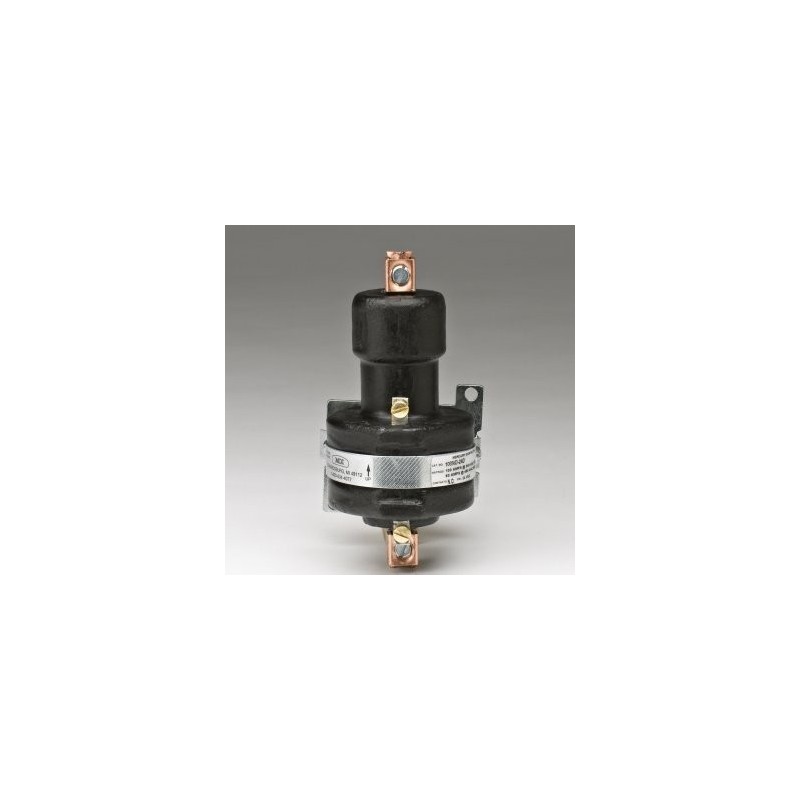

100A 1P 24Vdc Mercury Contactor 480V

Reference S100NO-24D

Brand Mercury Displacement Industries

Coil Rating 8.9-VA 65Ω
Contacts Normally Open Rated 100A@240/480
Amperage Rating Based On Resistive Load
Contact Make Time 50 Milliseconds
Contact Break Time 80 Milliseconds
Temperature Range -35°c To +85°c
Dielectric Withstanding UpTo 2500Vac RMS
Direct Replacement For Watlow HG100-6AC1-0000

$201.15

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Contacts Are Within A Hermetically Sealed Steel Body
Arcing Is In A Gaseous Atmosphere
Only One Moving Part (The Plunger)
Epoxy Encapsulated
Coil Terminals: #6 Binding Head Screws
Load Terminals: Pressure Connectors Accept #2 to #12 American Wire Gauge
UL Listing: File #E62767
C.S.A.: File #LR41198
1-Year Warranty
S100NO-24D Made In The USA By Mercury Displacement Industries, Inc.

Product Details

Reference S100NO-24D

EAN13 0

In stock 1 Item
