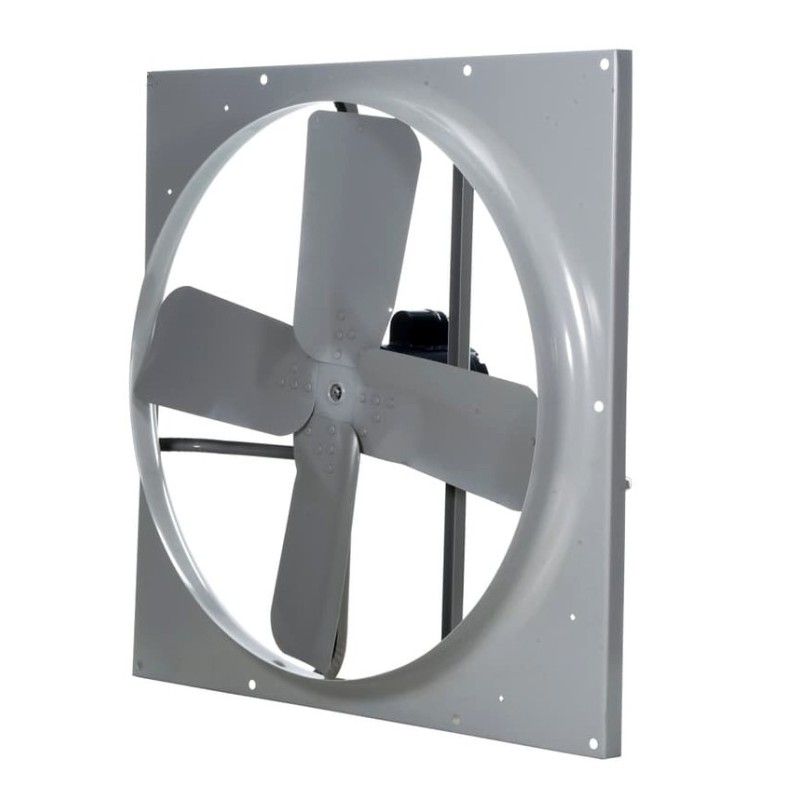

18" Propeller 24"sq 115v 1/16-hp 2-speed exhaust fan

Reference PD18TD3A

Brand Airmaster Fan Co.

Airmaster Fan Model PD18T-D3A EDP# 24201
115V 1-PH 1/16-HP 1110-RPM 2-Speed Ball Bearing Motor
2680-CFM @0.0" S.P., 2414-CFM @1/10" S.P.,
2332-CFM @1/8" S.P., 1789-CFM @1/4" S.P.
Percieved Preasure Sound 12/Sones @5'
Panel Size (Square) - 24 Inch
Wall Opening 18-1/2"

$549.85

Quantity

In stock: 6 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Direct Drive
Low Pressure
Industrial Duty
High Efficiency
Made In The USA

Product Details

Reference PD18TD3A

In stock 6 Items

Specific References

UPC: 783429242014

Attachments

Download

Low Pressure Direct Drive Cat.

Download (2.61KB)
