PM3C1CK-AAAABAA 1/32-DIN 2-Outputs

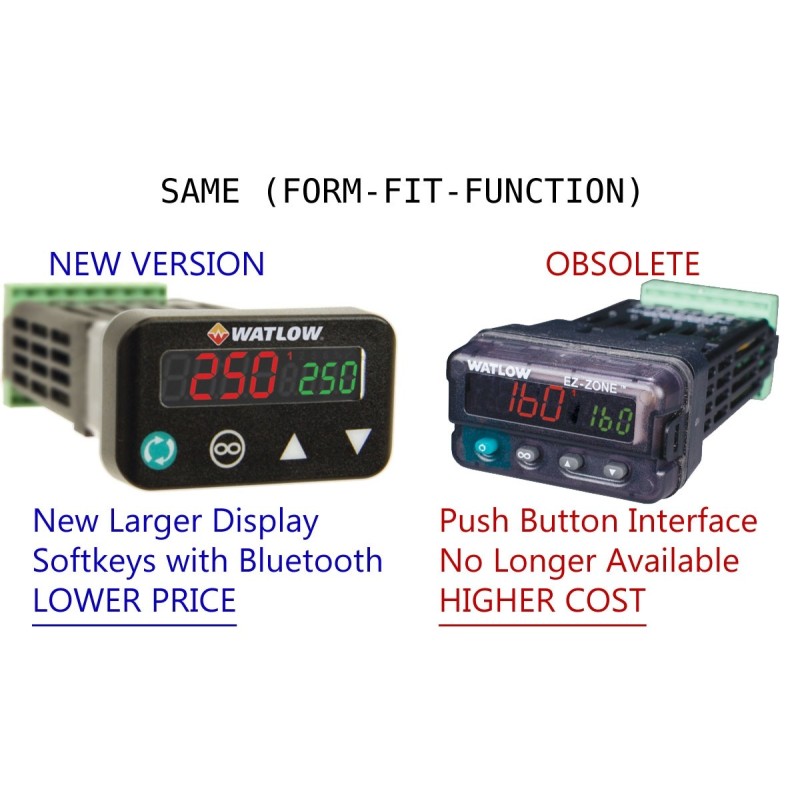

WATLOW PM3C1CK-AAAABAA is now the new PM3C1CK-BAAAHWP

Updated EZ-ZONE® Features

• Same Firmware so all program parameters remain the same.
• Same terminal connections so no new wiring changes are required.
• Same EZ-Zone computer software and Ez-Link mobile app can be used.
• Same three year warranty.
• New soft programing front panel keys.
• New IP67 rating so the front panel can not be removed from it's enclosure.
• New blue tooth option can be enabled for programing or setting changes.
• Also available in 12 ~ 40VDC or 20 ~ 28VAC Model PM3C3CK-BAAAHWP

Universal Input

• This can be a thermocouple grounded or ungrounded
• It can be an RTD 2-wire or 3-wire
• It can be 0-20mA or 0-50mV

Switched DC Specifications:

• 30mA DC Maximum Supply Current
• Short Circuit Limited to < 50mA
• 22 ~ 32V -DC Open Circuit Voltage
• Drives External Relay Using dc- and dc+

Open Collector Specifications:

• Current Sinking Output @ 100mA Maximum
• Maximum Supply Voltage -30VDC
• For DC Loads An External Power Supply Is Required
• Connect Load Negative To Open Collector

Solid State Relay Form A Specifications:

• Maximum Resistive Load 0.5A at 20 ~ 264VAC
• Rated For Pilot Duty 20VA 120/240VAC
• Single Pole Single Throw Normally Open Contact
• Opto Isolated Without Contact Suppression
• Off State Leakage Maximum 105mA
• Output Does Not Supply Power
• Not For Use On DC Loads

NOTE: Switching Pilot Duty Devices Such As Control Coils For Relays Or Contactors Produces An Electro-Magnetic Force When De-Energizing Those Type Of Loads. To Protect The Controller's Electronic Circuitry From The Inductive User Load, The Use Of An RC Suppressor Also Known As A Snubber Device Should Be Wired Between The Load And The Load Output Terminal Of The Controller. An Exception Is The Use Of Watlow Solid State Relays Having Internal RC Suppression.

Blue Tooth Communication Interface Comes Standard With All PM Series Controllers Which Can Provide An Easy Alternative to Setting Up Program Menu Options. Various Profiles Can Be Configured And Saved As Files And Can Be Up Loaded To Other PM Controllers. Smart phone, I-pad, laptop, using Watlow's free app EZ-Link provide an easy alternative programing method. The blue tooth is user enabled or disabled.

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
