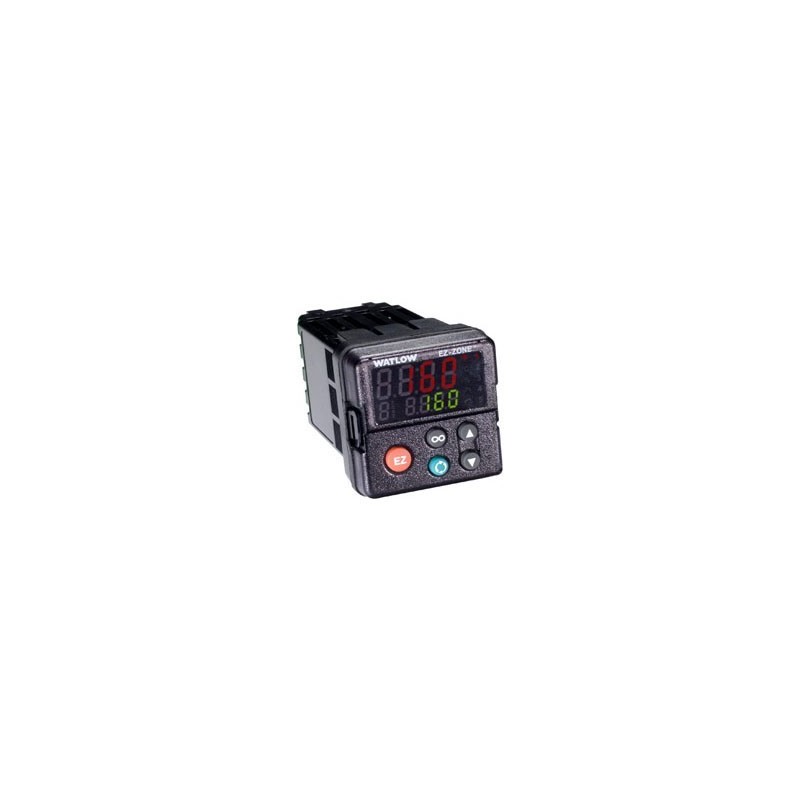

PM6C1EC-AAAAAAA 1/16-DIN 2-Outputs
  • PM6C1EC-AAAAAAA 1/16-DIN 2-Outputs
  • PM6C1EC-AAAAAAA Front View
  • PM6C1EC-AAAAAAA Rear View

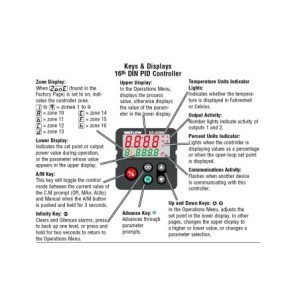

  • PM6C1EC-AAAAAAA Enhanced Menu Options

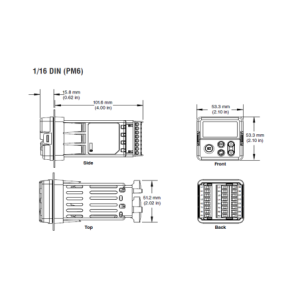

  • PM6C1EC-AAAAAAA Dimensions

PM6C1EC-AAAAAAA 1/16-DIN 2-Outputs

PM6C1EC-AAAAAAA
  • One Universal Input
  • Output #1 (E) - Mechanical relay 5A, Form C
  • Output #2 (C) - Switched DC
  • Operating Voltage 100 ~ 240VAC
  • Auto-Tune PID Controller With Extensive Menu Options
$403.00
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

WATLOW EZ-ZONE® PM6C1EC-AAAAAAA

  • This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
  • The serial communications when used with the free WATLOW software, saves time of controller setup.
  • Replacement for Watlow 965A-3DC0-00RR
  • Also available in 20 ~ 28VAC or 12 ~ 40VDC Model PM6C3EC-AAAAAAA

Updated EZ-ZONE® Features

  • These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C1EC-BAAAAAA
  • Watlow's new version of the EZ-ZONE® is the PLUS® model - PM6C1EC-BAAAPWP
  • Available with a basic simplified menu for thermal processes - PM6C1EC-BAAAHWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.

Product Details
PM6C1EC-AAAAAAA
0
1 Item
