PM3C1FA-AAAABAA 1/32-DIN 1-Output

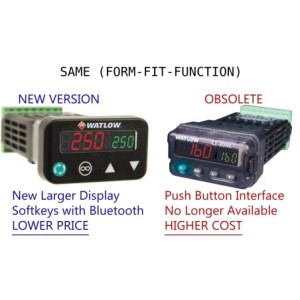

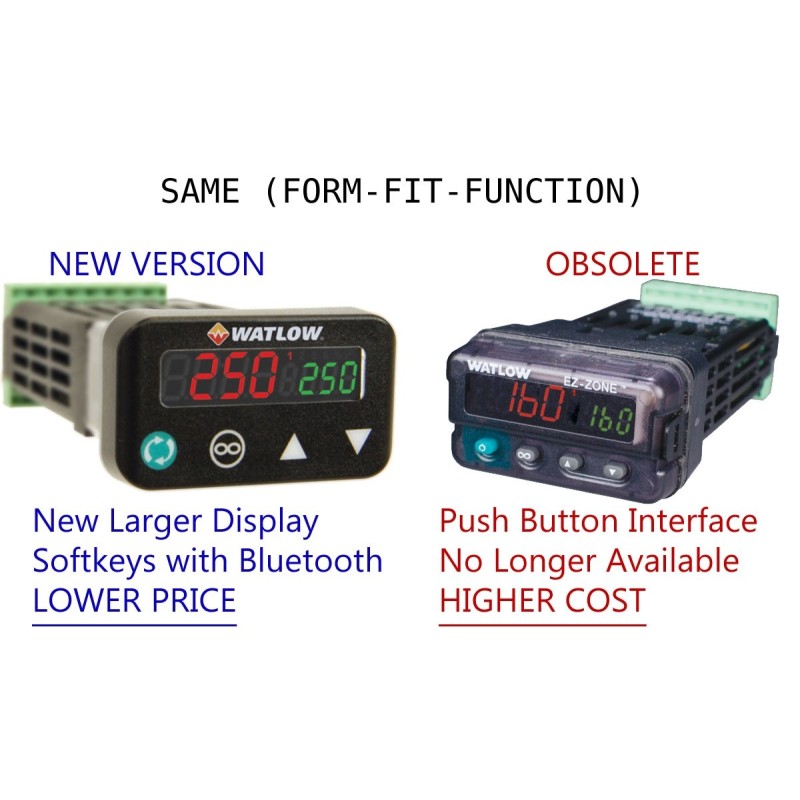

WATLOW PM3C1FA-AAAABAA is now the new PM3C1FA-BAAAHWP

Updated EZ-ZONE® Features

• Same Firmware so all program parameters remain the same.
• Same terminal connections so no new wiring changes are required.
• Same EZ-Zone computer software and Ez-Link mobile app can be used.
• Same three year warranty.
• New soft programing front panel keys.
• New IP67 rating so the front panel can not be removed from it's enclosure.
• New blue tooth option can be enabled for programing or setting changes.
• Available in 12 ~ 40VDC or 20 ~ 28VAC Model PM3C3FA-BAAAHWP

Universal Input

• This can be a thermocouple grounded or ungrounded
• It can be an RTD 2-wire or 3-wire
• It can be 0-20mA or 0-50mV

Universal Process

• Range Selectable Analog either 0 ~ 10VDC or 0 ~ 20mA

Selectable Analog Output Specifications:

• Range Selectable Either Dc Voltage or mA Current
• 0 ~ 20mA ±30µA Into 800Ω Maximum Load With 5µA Resolution
• 0 ~ 10Vdc ±15mV Into 1KΩ Minimum Load With 2.5mV Nominal Resolution
• Scalable Output Supplies Power
• Output May Be Used As Retransmit or Control
• Can Not Use Both Current & Voltage Outputs At Same Time

Blue Tooth Communication Interface Comes Standard With All PM Series Controllers Which Can Provide An Easy Alternative to Setting Up Program Menu Options. Various Profiles Can Be Configured And Saved As Files And Can Be Up Loaded To Other PM Controllers. Smart phone, I-pad, laptop, using Watlow's free app EZ-Link provide an easy alternative programing method. The blue tooth is user enabled or disabled.

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
