PM3C1EA-AAAABAA 1/32-DIN 1-Output

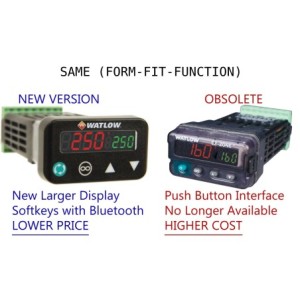

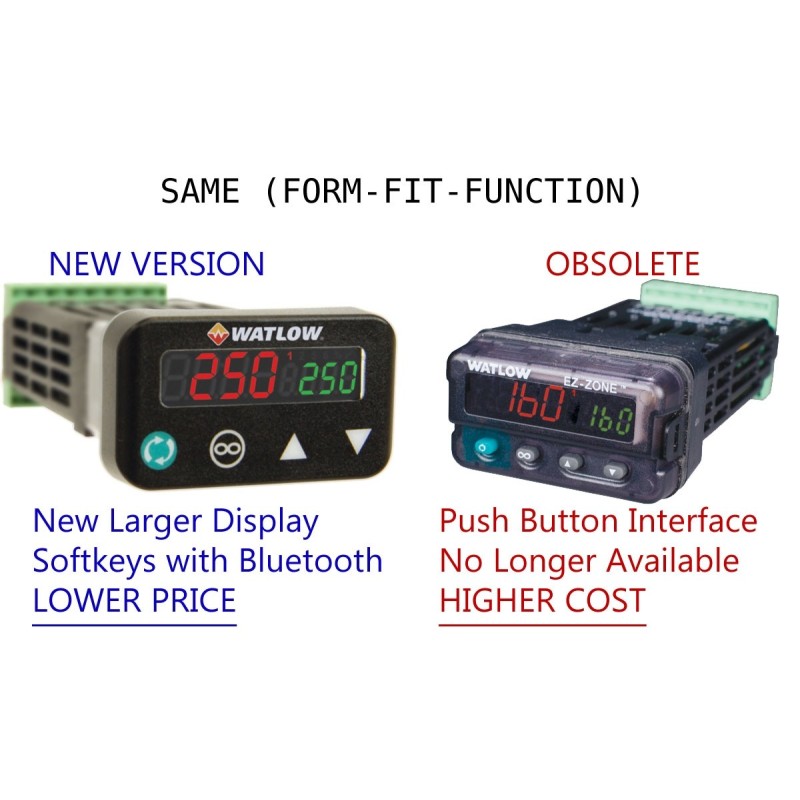

WATLOW PM3C1EA-AAAABAA is now the new PM3C1EA-BAAAHWP

Updated EZ-ZONE® Features

• Same Firmware so all program parameters remain the same.
• Same terminal connections so no new wiring changes are required.
• Same EZ-Zone computer software and Ez-Link mobile app can be used.
• Same three year warranty.
• New soft programing front panel keys.
• New IP67 rating so the front panel can not be removed from it's enclosure.
• New blue tooth option can be enabled for programing or setting changes.
• Available in 12 ~ 40Vdc or 20 ~ 28Vac Model PM3C3EA-BAAAHWP

Universal Input

• This can be a thermocouple grounded or ungrounded
• It can be an RTD 2-wire or 3-wire
• It can be 0-20mA or 0-50mV

Electro-Mechanical Relay Form C Specifications:

• Maximum Resistive Load 5A at 240Vac Or 30Vdc
• 20mA at 24V Minimum Load
• Rated For Pilot Duty 125Va at 120/240Vac And 25Va at 24Vac
• Single Pole Double Throw Normally Open Contact
• 100,000 Cycles at Rated Load
• Output Does Not Supply Power
• For Use On AC Or DC Loads

NOTE: Switching Pilot Duty Devices Such As Control Coils For Relays Or Contactors Produces An Electro-Magnetic Force When De-Energizing Those Type Of Loads. To Protect The Controller's Electronic Circuitry From The Inductive User Load, The Use Of An RC Suppressor Also Known As A Snubber Device Should Be Wired Between The Load And The Load Output Terminal Of The Controller. An Exception Is The Use Of Watlow Solid State Relays Having Internal RC Suppression.

Blue Tooth Communication Interface Comes Standard and Can Provide An Easy Alternative to Setting Up Program Menu Options. Various Profiles Can Be Configured And Saved As Files And Can Be Up Loaded To Other PM Controllers.

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
