PM6C1EK-AAAABAA 1/16-DIN 2-Outputs

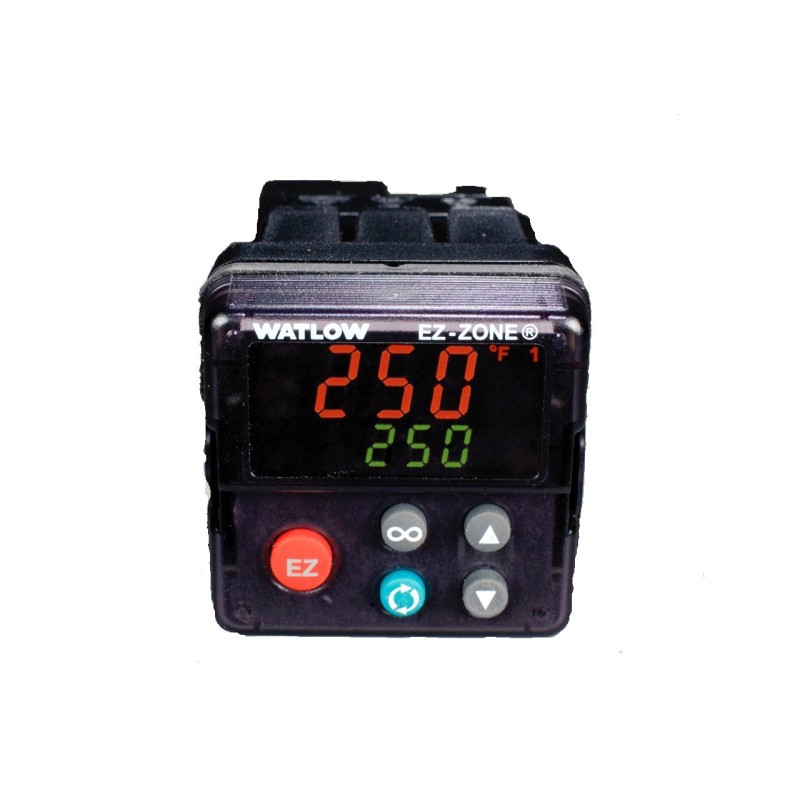

WATLOW EZ-ZONE® PM6C1EK-AAAABAA

• This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
• The serial communications when used with the free WATLOW software, saves time of controller setup.
• Also available in 20 ~ 28VAC or 12 ~ 40VDC Model PM6C3EK-AAAABAA

Updated EZ-ZONE® Features

• These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C1EK-BAAABAA
• Watlow's new version of the EZ-ZONE® EXPRESS is the LEGACY® model - PM6C1EK-BAAAHWP
• Available with a more extensive menu EZ-ZONE® PLUS® thermal process - PM6C1EK-BAAAPWP

Universal Input

• This can be a thermocouple grounded or ungrounded
• It can be an RTD 2-wire or 3-wire
• It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Direct replacement for Watlow Series 93 & Series 96

This unit replaces obsolete models: 93AA-1DK0-00AA, 93AA-1DK0-00AB, 93AA-1DK0-00AC, 93AA-1DK0-00AD, 93AA-1DK0-00GG, 93AA-1DK0-00GR, 93AA-1DK0-00RG, 93AA-1DK0-00RR, 93AA-1KD0-00AA, 93AA-1KD0-00AB, 93AA-1KD0-00AC, 93AA-1KD0-00AD, 93AA-1KD0-00GG, 93AA-1KD0-00GR, 93AA-1KD0-00RG, 93AA-1KD0-00RR, 93AB-1DK0-00AA, 93AB-1DK0-00AB, 93AB-1DK0-00AC, 93AB-1DK0-00AD, 93AB-1DK0-00GG, 93AB-1DK0-00GR, 93AB-1DK0-00RG, 93AB-1DK0-00RR, 93AB-1KD0-00AA, 93AB-1KD0-00AB, 93AB-1KD0-00AC, 93AB-1KD0-00AD, 93AB-1KD0-00GG, 93AB-1KD0-00GR, 93AB-1KD0-00RG, 93AB-1KD0-00RR, 93BA-1DK0-00AA, 93BA-1DK0-00AB, 93BA-1DK0-00AC, 93BA-1DK0-00AD, 93BA-1DK0-00GG, 93BA-1DK0-00GR, 93BA-1DK0-00RG, 93BA-1DK0-00RR, 93BA-1KD0-00AA, 93BA-1KD0-00AB, 93BA-1KD0-00AC, 93BA-1KD0-00AD, 93BA-1KD0-00GG, 93BA-1KD0-00GR, 93BA-1KD0-00RG, 93BA-1KD0-00RR, 93BB-1DK0-00AA, 93BB-1DK0-00AB, 93BB-1DK0-00AC, 93BB-1DK0-00AD, 93BB-1DK0-00GG, 93BB-1DK0-00GR, 93BB-1DK0-00RG, 93BB-1DK0-00RR, 93BB-1KD0-00AA, 93BB-1KD0-00AB, 93BB-1KD0-00AC, 93BB-1KD0-00AD, 93BB-1KD0-00GG, 93BB-1KD0-00GR, 93BB-1KD0-00RG, 93BB-1KD0-00RR, 965A-3DK0-0000, 965A-3DK0-00AM, 965A-3DK0-00BH, 965A-3DK0-00BR, 965A-3DK0-00EL, 965A-3DK0-00GG, 965A-3DK0-00GR, 965A-3DK0-00RG, 965A-3DK0-0200, 965A-3DK0-02AM, 965A-3DK0-02BH, 965A-3DK0-02BR, 965A-3DK0-02EL, 965A-3DK0-02GG, 965A-3DK0-02GR, 965A-3DK0-02RG, 965A-3DK0-0300, 965A-3DK0-03AM, 965A-3DK0-03BH, 965A-3DK0-03BR, 965A-3DK0-03EL, 965A-3DK0-03GG, 965A-3DK0-03GR, 965A-3DK0-03RG, 965A-3DK0-0400, 965A-3DK0-04AM, 965A-3DK0-04BH, 965A-3DK0-04BR, 965A-3DK0-04EL, 965A-3DK0-04GG, 965A-3DK0-04GR, 965A-3DK0-04RG, 965A-3KD0-0000, 965A-3KD0-00AM, 965A-3KD0-00BH, 965A-3KD0-00BR, 965A-3KD0-00EL, 965A-3KD0-00GG, 965A-3KD0-00GR, 965A-3KD0-00RG, 965A-3KD0-0200, 965A-3KD0-02AM, 965A-3KD0-02BH, 965A-3KD0-02BR, 965A-3KD0-02EL, 965A-3KD0-02GG, 965A-3KD0-02GR, 965A-3KD0-02RG, 965A-3KD0-0300, 965A-3KD0-03AM, 965A-3KD0-03BH, 965A-3KD0-03BR, 965A-3KD0-03EL, 965A-3KD0-03GG, 965A-3KD0-03GR, 965A-3KD0-03RG, 965A-3KD0-0400, 965A-3KD0-04AM, 965A-3KD0-04BH, 965A-3KD0-04BR, 965A-3KD0-04EL, 965A-3KD0-04GG, 965A-3KD0-04GR, 965A-3KD0-04RG

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
