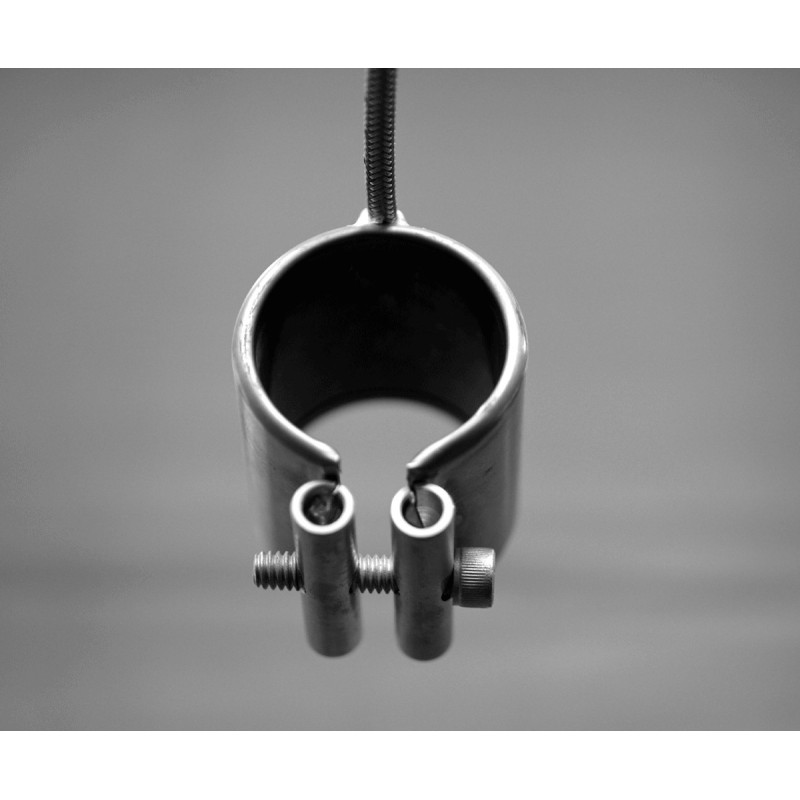

1-1/2" ID 2"W Nozzle Heater 400w 120v

MB01J2AB-3168
  • 1-PC Mineral Insulated Band Heater
  • 400W 120V
  • 29" Fiberglass Insulated Leads
  • 27" Stainless Steel Tight Braid Over Leads
  • Built In Mounting Clamp Bars
  • Stainless Steel Sheath
  • Old part No. MB1J2AB34
$160.15
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The mineral insulated (MI) band heater from Watlow®  is a high-performance heater that incorporates Watlow’s exclusive mineral insulation. This material offers much higher thermal conductivity than mica and hard ceramic insulators that are used in conventional heaters.  A thin layer of high thermal conductive MI material electrically insulates the element wire from the inside diameter of the heater sheath. A thicker, low thermal conductivity layer backs up the element wire directing the heat inward toward the part being heated. The result is efficient heat transfer, which lowers element wire temperatures and increases heater life.

The sheath is made of Stainless Steel and is folded inward of the band which resists contamination by overflow of plastic or other free flowing materials.

The built in clamp bars eliminate cumbersome clamping straps.

Watlow® is a registered trademark of Watlow Electric Manufacturing

Product Details
MB01J2AB-3168
0
2 Items
4 other products in the same category:
MB6N1JP7 MB6N1JP7

Reference: ME7J3AP2

Brand: Watlow Electric Mfg.

7-1/2"id 3"w Expandable Band Heater 2325w 240/480v

2-PC in one expandable Stainless Steel Sheath Mineral Insulated Band Heater 2325w 480v (25w² Inch) input 240v per piece Two sets of parallel 10-24 thread post terminals located opposite from gap Built In Mounting Clamp Bars with 1/4-20 bolts Similar to DME CMN00100 Similar to Cincinnati Milacron 5039239 SHIPS 15-DAYS after order entry
$207.00
More 7-1/2"id 3"w Expandable Band Heater 2325w 240/480v
Last items in stock
MB5J1JP1 MB5J1JP1

Reference: ME05J1JP-3004

Brand: Watlow Electric Mfg.

5-1/2" ID 1-1/2"W Band Heater 1200w 120/240v

2-PC in one expandable Stainless Steel Sheath Mineral Insulated Band Heater 1200w 240v (40w² Inch) input 120v per piece Two sets of parallel 10-24 thread post terminals located opposite from gap Built In Mounting Clamp Bars with 1/4-20 bolts Ships 20-days after order entry
$163.95
More 5-1/2" ID 1-1/2"W Band Heater 1200w 120/240v
Last items in stock
1" ID 1-1/2"W NOZZLE HEATER 1" ID 1-1/2"W NOZZLE HEATER

Reference: MB1A1JN1-B12

Brand: Watlow Electric Mfg.

1" ID 1-1/2"W Nozzle Heater 300w 240v

1-PC Mineral Insulated Band Heater 300w 240v (106w² Inch) 12" Fiberglass Insulated Leads 10" Stainless Steel Tight Braid Over Leads Built In Mounting Clamp Bars Stainless Steel Sheath Similar to DME MI1015B2 Similar to Tempco MPP50801 Similar to chromalox MT-01015-0838
$134.86
More 1" ID 1-1/2"W Nozzle Heater 300w 240v
Last items in stock
