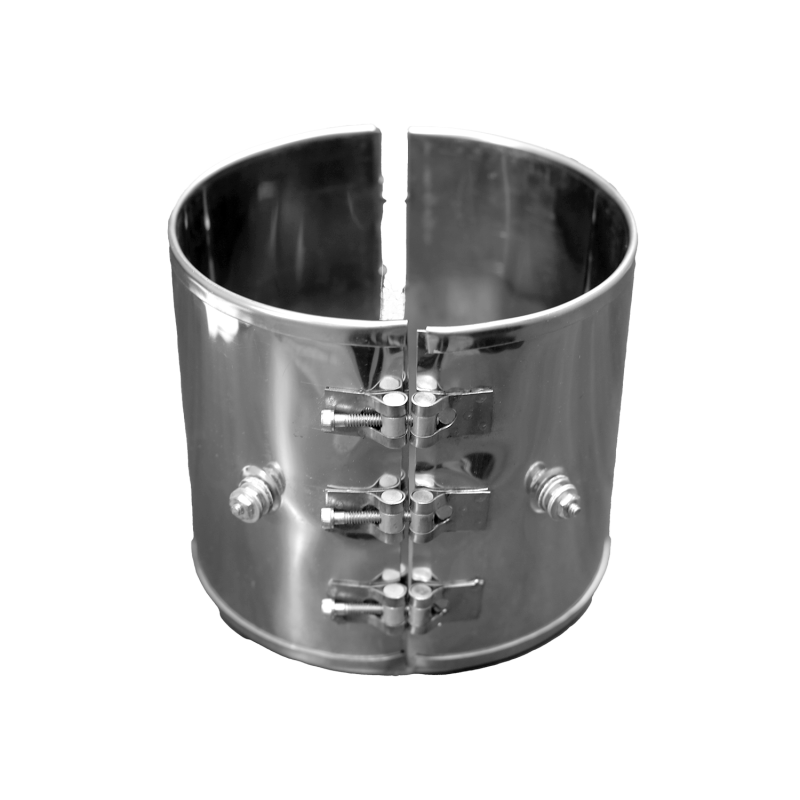

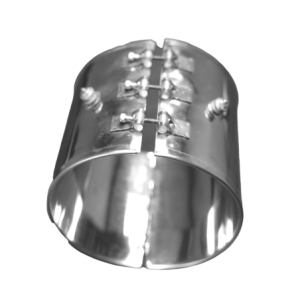

6-3/4" Inside diameter X 6-1/2" Wide, Nut and Barrel clamping, Post terminal wiring, 2-Pc construction, 3000W 120/240v Mica insulated barrel heater.
This two-piece mica insulated band heater should be convenient mounting on large barrel sizes where a band heater cannot be slipped over the end of a barrel. Each half of the two-piece heater is rated at 1500w 120v and should be wired in series for 240v or in parallel for 120v.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
A mica core produces a thin, efficient heater. Heat from the precisely wound nichrome element is quickly transferred to the working surface for fast heat-up and response. Mica provides excellent dielectric strength and heat transfer capability for long heater life. The mica core is encased in a continuous corrosion resistant sheath designed with closed ends to protect against contamination. Mica insulated bands are The least expensive and cost effective heaters for low wattage applications. This heater band is manufactured by Watlow Electric Mfg.
Specific References
Reference: FBE01J01J-00043
Brand: Ogden
Reference: SHV1J1AL-5
Brand: Watlow Electric Mfg.
Reference: B1A1AN2-A12
Brand: Watlow Electric Mfg.
Reference: SHV1J2J2-L10
Brand: Marathon Heater Inc.
6-3/4" Inside diameter X 6-1/2" Wide, Nut and Barrel clamping, Post terminal wiring, 2-Pc construction, 3000W 120/240v Mica insulated barrel heater.
This two-piece mica insulated band heater should be convenient mounting on large barrel sizes where a band heater cannot be slipped over the end of a barrel. Each half of the two-piece heater is rated at 1500w 120v and should be wired in series for 240v or in parallel for 120v.
