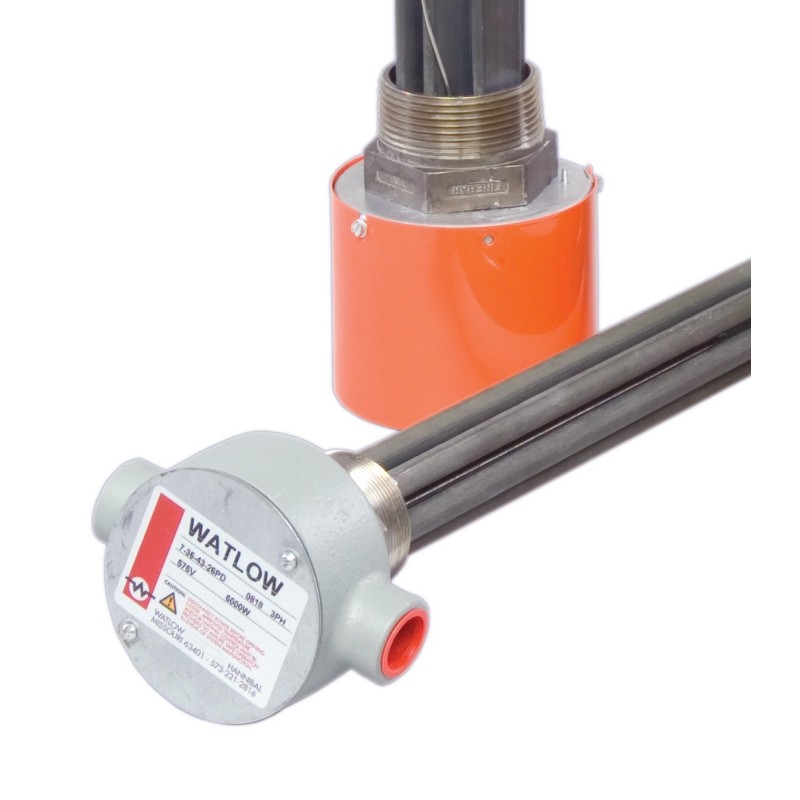

BLR714L5S screw plug immersion heater
- Comes wired 480v 3-phase delta in a general purpose wiring enclosure
- It has (3) 316-ss passivated 14.625-inch immersed length heating elements
- with epoxy resin end seals rated at 194ºF and provide up to 6kw
- Also included is an integral thermowell for a sensor (sensor not included)
- The heater has no heat the first 2.1875-inches from the 2-1/2-inch NPT screw plug
- and has an approximate shipping weight of 10/Lbs.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
2-1/2" NPT Screw Plug immersion heater | BLR714L5S
Application that require heating Deionized/Demineralized water
- Medical and pharmaceutical manufacturing
- Car washes
- Steam boilers and cooling systems
- Electronics manufacturing
- Cleaning processes
- Manufacturing cosmetics and personal care products
- Manufacturing lead-acid batteries
Features & Benefits of the Watlow® immersion heater
The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the screw plug is 316SS.
Ideal Immersion Heating for Liquids & Oils using Heat Transfer Solutions.
Review the above tabs for Data Sheets, FAQ's & Attachments; more specifics and manuals.
Product Details
BLR714L5S
3 Items
- Comes wired 480v 3-phase delta in a general purpose wiring enclosure
- It has (3) 316-ss passivated 14.625-inch immersed length heating elements
- with epoxy resin end seals rated at 194ºF and provide up to 6kw
- Also included is an integral thermowell for a sensor (sensor not included)
- The heater has no heat the first 2.1875-inches from the 2-1/2-inch NPT screw plug
- and has an approximate shipping weight of 10/Lbs.
