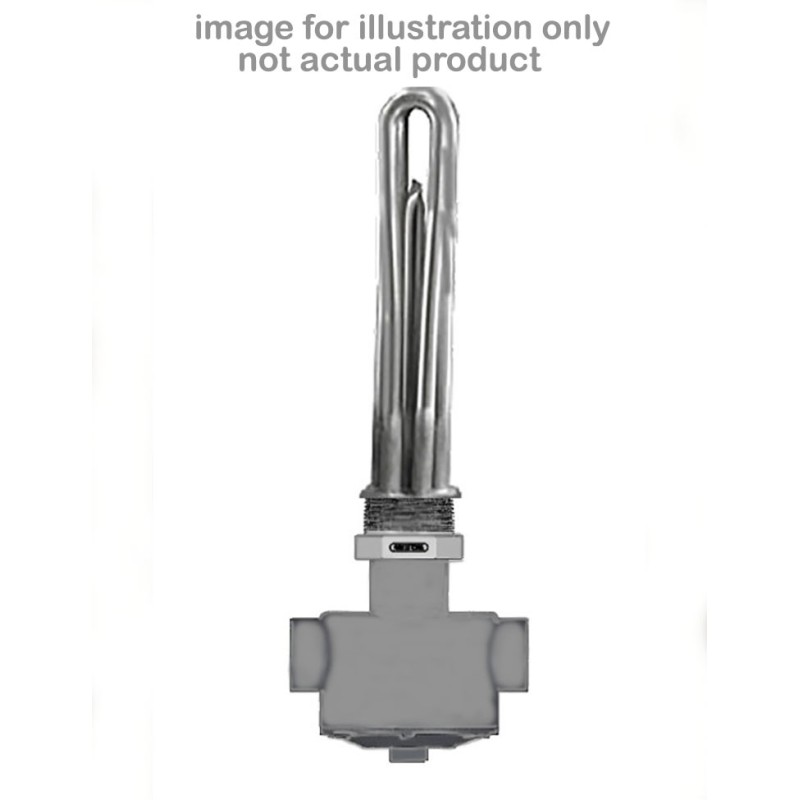

BLR77L5C screw plug immersion heater

Screw Plug | BLR77L5C

Application: Deionized/Demineralized Water

• Steam boilers and cooling systems
• Manufacturing lead-acid batteries
• Car washes
• Electronics manufacturing
• Medical and Pharmaceutical manufacturing
• Cleaning processes
• Manufacturing Cosmetics and Personal Care Products
• Applications that require heating demineralized water

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating element has a bright annealing passivation for corrosion resistance.

NOTE: A NEMA-7 enclosure designated for locations classified as Class-1, Division-1, Groups A,B,C, or D as defined in NFPA 70 is installed on this heater; however, is NOT CERTIFIED as installed on the heater. To obtain CSA certification as explosion proof Class-1, Groups B,C,D as installed on the heater, the end user must provide Watlow® the following intended process conditions: operating temperature, operating pressure, media type being heated, including the installation orientation of the heater (horizontal or vertical).

• One conduit hub is supplied as per provided drawing above.

Review the above tabs for Data Sheets, FAQ's & Attachments; more specifics and manuals.
