Hubbell-HBL430P7W
  • Hubbell-HBL430P7W

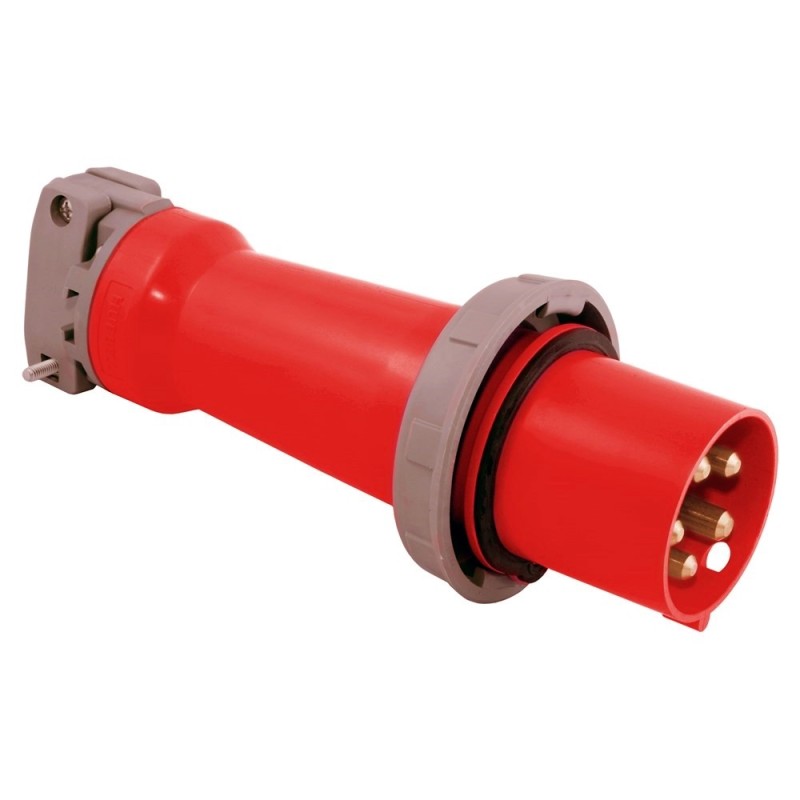

30A 3P 4W 480V 3-Phase Male Plug

HBL430P7W
Hubbell

Hubbell non-metallic pin and sleeve male plug:

  • Cable cord clamp range from .375" up to 1.25"
  • Terminal copper wire range from 12awg up to 8awg
  • Housing is watertight Nylon
  • Neoprene gasket and cable glands
  • Brass conductor pins including ground
  • Good for 1000 connect and disconnect cycles at full load
  • Maximum continuous temperature rated at 167°F
  • Previous part number 430P7W
$285.00
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Watertight Excellence - Hubbell's IEC 60309 Pin and Sleeve devices stand as the pinnacle of performance. Specifically crafted for the rigorous North American market, our HBL® series is unmatched. Hubbell proudly remains the sole U.S. manufacturer of IEC 60309 products, offering a host of pioneering features:

  • Super Tough Build: Crafted from rugged, one-piece housing.
  • Electrical Resilience: The thermoset polyester contact carrier resists electrical tracking.
  • High-Temperature Endurance: Designed to withstand elevated temperatures from overloads or arcing.
  • Premium Cord Grip: The heavy-duty external cord grip ensures exceptional strain relief on conductors.
  • NEC Compliance: Hubbell's horsepower-rated plugs and receptacles meet NEC 430.109(F) requirements.
  • Approved "Line of Sight" Disconnect: Recognized as an approved disconnecting means for enhanced safety.

Choose Hubbell for unparalleled reliability in IEC 60309 devices.

Product Details
HBL430P7W
2 Items

Specific References

UPC
78358540458
