Arktite AP40467
  • Arktite AP40467
  • Crouse-Hinds AP40467
  • Cooper AP40467

400A Plug 4P 3W 600Vac 250Vdc

AP40467
Crouse-Hinds

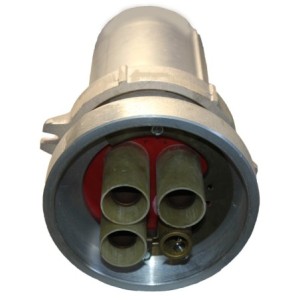

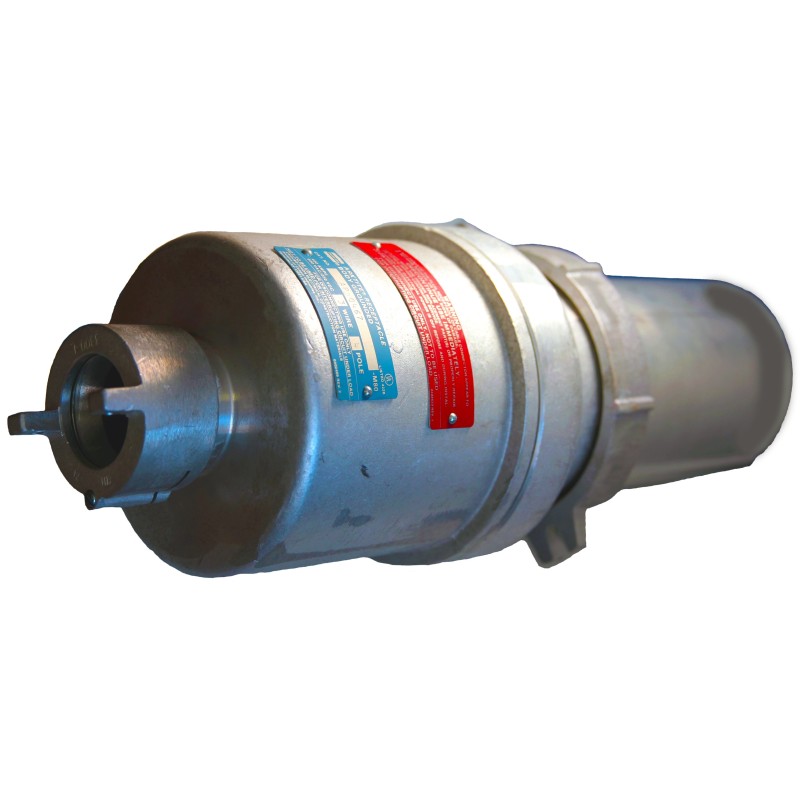

Cooper Crouse-Hinds Arktite® pin & sleeve heavy duty weatherproof plug:

  • For mating with Arktite® APR40427
  • Crimp/solder type contacts
  • Wire size 1.375 - 1.875 Inch, 250-500 MCM
  • Style 2 large wire wells for max. conductor size .84"
  • Body is high impact copper-free aluminum
  • 8" diameter x 20-1/2"Long
  • Plug weight is 22.75/lbs,  shipping weight is 30/lbs.
$3,989.00
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Product Specifications - Arktite® AP40467

  • Amperage: 400 Amp
  • Amperage Rating: 400 Amp
  • Application: Industrial Facilities & Factories - Power Distribution and Control
  • Approximate Weight: 26.21 lbs
  • Catalog Number: AP40467
  • Connection: Crimp/Solder
  • Cord Type: 1.375 to 1.875 Inches
  • Country of Origin: USA
  • Dimensions: 20.5000 inches (Length) x 8.0000 inches (Width) x 8.0000 inches (Height)
  • Distributor: Industrial & Electric Supply - MROcrib
  • Material: Copper-free Aluminum
  • Number of Poles: 4
  • Size: 8 Inches in Diameter x 20-1/2 Inches in Length
  • Special Features: Heavy-Duty, Weatherproof, Grounding Style 2
  • Standard: UL 1682, UL 1686, CSA C22.2, CE
  • Trade Size: 8 Inches in Diameter x 20-1/2 Inches in Length
  • Type: Plug
  • Voltage: 600 VAC at 50 to 400 Hz, 250 VDC
  • Wire Size: 250 to 500 MCM (Building), 250 to 400 MCM (Extra Flex)
  • Wire Size/Gauge: 250 to 500 MCM (Building), 250 to 400 MCM (Extra Flex)

These specifications detail a high-quality, heavy-duty industrial plug designed for power distribution and control, manufactured by Eaton in the USA. It meets various industry standards for safety and performance.

Product Details
AP40467
1 Item

Specific References

UPC
782274040523
Attachments
Download
Arktite® Heavy Duty Receptacle

Arktite® Heavy Duty Receptacle Assemblies.

Download (2.61KB)
