The EZ-ZONE RM controller streamlines thermal system management with its integrated controller family consisting of six module types. These include an integrated on-off or PID control module with monitoring and over/under temperature limit control, a high-density on-off or PID control module, a high-density limit-only module, an input/output (I/O) expansion module, a high-density monitor/scanner module, and a data logging and field communications access module. This allows for easy configuration of a system by connecting any combination of module types to suit specific application requirements. The EZ-ZONE RM offers exceptional flexibility and scalability, enabling the mixing and matching of I/O to configure anywhere from 1 to 152 control loops and up to 256 monitor points.
A required 24/48vDC power supply can be din rail mounted next to the RMC module.
A process controller that uses auto-tune capability. Utilizing Watlow's exclusive TRU-TUNE®+ adaptive algorithm technology. Serial bus communications protocol comes standard and when used with Watlow's free EZ-ZONE® graphical configuration software. The RMC controller can be conveniently configured via a laptop or desktop computer instead of using a remote user interface which can also be used to configure or monitor the RMC controller. For input types and functions, please select the product details tab to learn more.
(3) PID control loops with universal inputs with (3) mechanical 5A SPST relay outputs, (6) digital inputs/outputs and comes with front screw connectors.
(1) limit controller with universal input
(1) mechanical 5A SPST relay output
(3) switched dc/open collector outputs

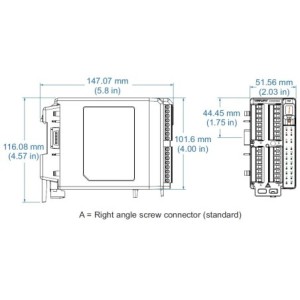

comes with right angle screw connector
Please refer to the tabs below for information on product description, details, remote user interface, as well as software and document downloads.
$555.48
In Stock
(1) limit controller with universal input
(1) mechanical 5A SPST relay output
(3) PID control loops with universal inputs
(3) mechanical 5A SPST relay outputs
comes with Modbus RTU485 communications hardware
right angle screw connector
Please refer to the tabs below for information on product description, details, remote user interface, as well as software and document downloads.
