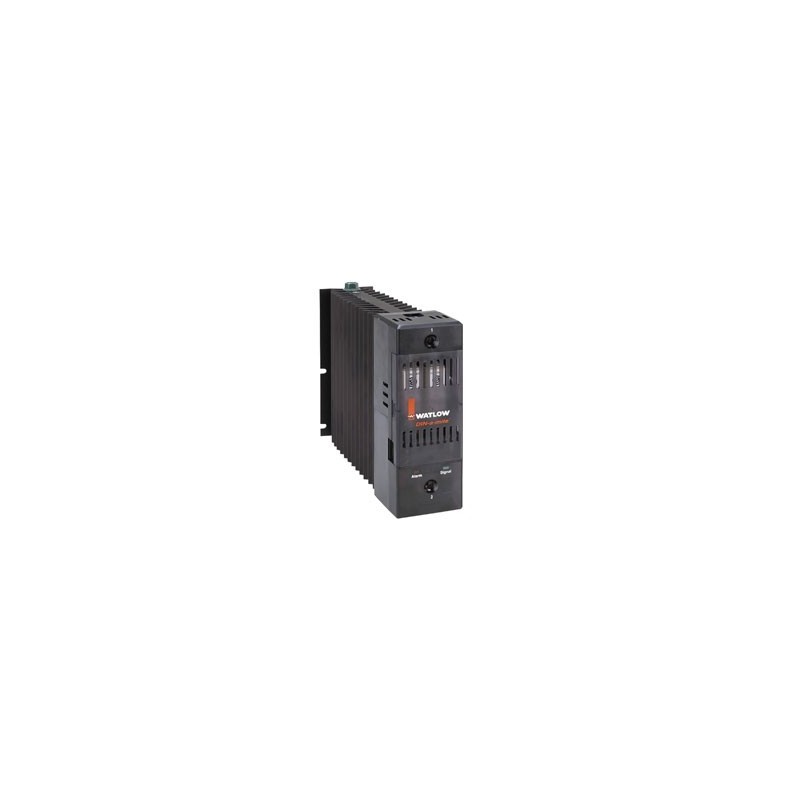

DD10-60F0-S000 Watlow Din-A-Mite D
  • DD10-60F0-S000 Watlow Din-A-Mite D

DD10-60F0-S000 Watlow Din-A-Mite D

DD10-60F0-S000
  • Line Voltage 277~600Vac 1-Phase
  • Proportional Control Input 4 ~ 20mA-dc
  • Back to Back SCR Design
  • With Shorted SCR Alarm
  • Zero Cross Switching Up-To 100A@86°F (see table below)
  • 200Ka Short Circuit Current Rating with proper fusing

View attachments tab below for literature and instructions.

$912.00
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Din-A-Mite D Current De-Ratings Shown Are Based On Natural Convection

   176°F....50-Amp    158°F....60-Amp    140°F....70-Amp    122°F....80-Amp    104°F....90-Amp    86°F......100-Amp

Din-A-Mite D - Operator Interface

  • Control input and indication light
  • Alarm output and indication light

Din-A-Mite D - Operating Environment

  • 0 to 90% non-condensing relative humidity
  • Storage temperature: -40°F to 185°F (-40°c to 85°c)
  • Operating temperature: 32°F to 185°F (0°c to 85°c)
  • Insulation tested to 3,000 meters

Din-A-Mite D - Terminals

  • Control input terminals: compression 26 to 12 AWG max torque 4.4 in/lb
  • Line & Load terminals: compression 6 to 2 AWG max torque 80 ~ 90 in/lb

Din-A-Mite D - Mounting

  • Back-Panel mounting holes for #10 fastener size
  • Fits same mounting pattern as 100A Mercury Relay

Din-A-Mite D - Agency Approvals

  • CE with proper filter: 204/108/EC electromagnetic compatibility directive EN 61326-1: industrial immunity Class A emissions not suitable for Class B environments, 2006/95/EC low voltage directive EN50178 safety requirements.
  • UL-508 listed and C-UL file E73741
  • Shock and vibration tested to 2g, 10-Hz ~ 150-Hz
