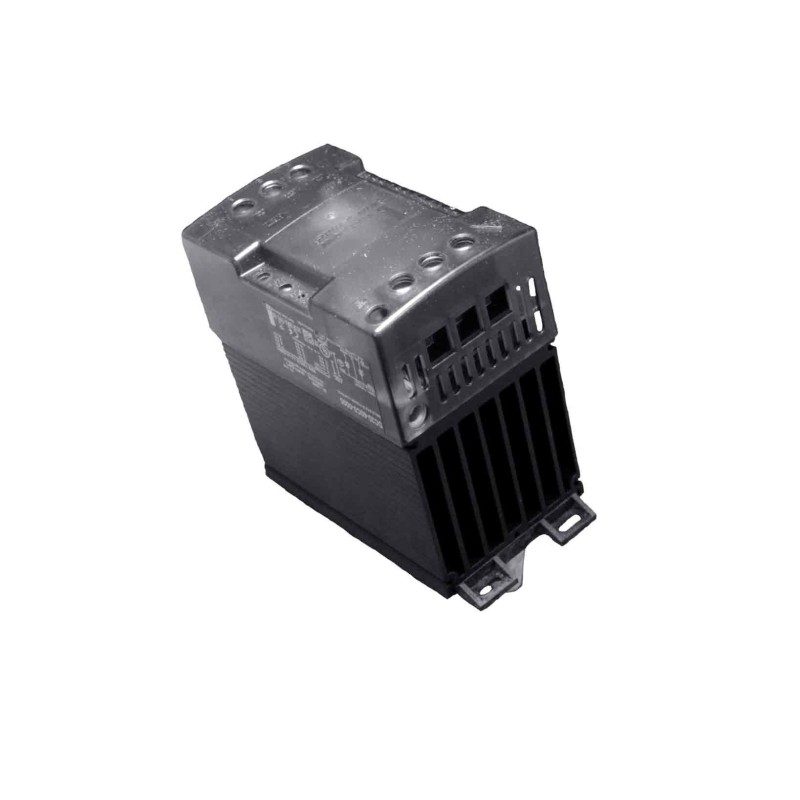

DC10-24K1-0000 Watlow Din-A-Mite C

DC10-24K1-0000
  • Line Voltage 100~240Vac 1-Phase
  • Control Input 24~48Vac
  • Back to Back SCR Design
  • 200Ka Short Circuit Current Rating with proper fusing
  • Zero Cross Switching Up-To 62.5A@104°F (see table below)
  • Available with Shorted SCR Alarm Watlow DC10-24K1-S000
$404.00
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
Current De-Ratings Shown Are Based On Natural Convection (No Artificial Cooling)
   176°F....32.5-Amp    158°F....40-Amp    140°F....48-Amp    122°F....55-Amp    104°F....62.5-Amp    86°F......70-Amp
Operator Interface
  • Control input and indication light
  • Alarm output and indication light
  • Current limit indication LED



Operating Environment
  • 0 to 90% non-condensing relative humidity
  • Storage temperature: -40°F to 185°F(-40°c to 85°c)
  • Operating temperature: -29°F to 176°F(-34°c to 80°c)
  • Insulation tested to 3,000 meters



Terminals
  • Control input terminals: compression 24 to 16 AWG max torque 4.4 in/lb
  • Line & Load terminals: compression 14 to 4 AWG max torque 24 in/lb



Mounting
  • DIN-Rail 35mm X 7.5mm DIN EN 50022
  • Back-Panel four mounting holes #6 to #8 fastener size
  • Through-Wall



Agency Approvals
  • CE with proper filter: 204/108/EC electromagnetic compatibility directive EN 61326-1: industrial immunity Class A emissions not suitable for Class B environments, 2006/95/EC low voltage directive EN50178 safety requirements installation category III, pollution degree 2.
  • UL-50 type 4x enclosure, Class 1, Div.2 per ANSI/ISA 12.12.01, through wall heat sink models T4 file 184390
  • UL-508 listed and C-UL file E73741
  • Shock and vibration tested to IEC 60068-2-32
  • Vibration tested to IEC 60068-2-6
