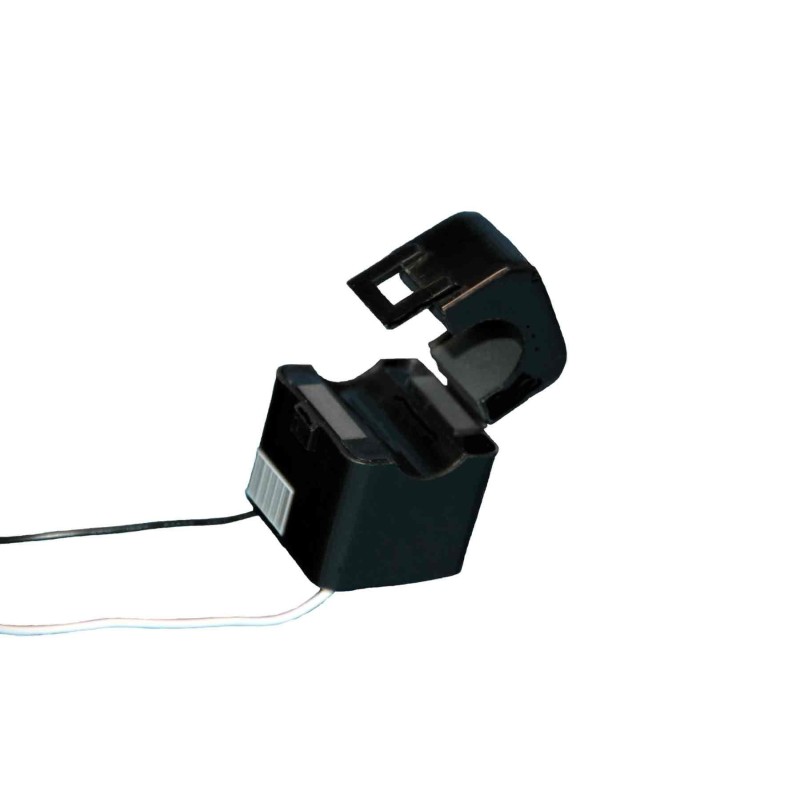

CT24D300SL Split Core Current Transformer
  • CT24D300SL Split Core Current Transformer
  • CT24D300SL Split Core Current Transformer
  • CT24D300SL Drawing

Current Transformer 100A to 33mA

CT24D300SL

This Split Core Current Transformer Is Able To Produce a 0-20mA AC Signal From a 0-100A AC Primary Current. The Split Core Allows The Transformer To Be Installed Without Disconnecting The Primary Current Carrying Wire. Comes with 6"Leads

$38.00
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
Rated Primary Current at 50/60 Hz: 100 A
Maximum Primary Current at 50/60 Hz: 360 A
Current Ratio: 100 A : 33.3 mA
Accuracy @RL≤10 Ω: 0.2 % F.S.
Linearity @RL≤10 Ω: 0.5 %
Operating Temperature: -20 to 75 °C
Storage Temperature: -30 to 90 °C
Dielectric Withstanding Voltage: 2,500 V / 1 mA / 1 min
Impluse Withstand Voltage: 5 kV Peak
Insulation Resistance at 500 VDC: 100 MΩ
Dimensions: 31 × 31 × 45 mm
Weight: 70 g
Product Details
CT24D300SL
