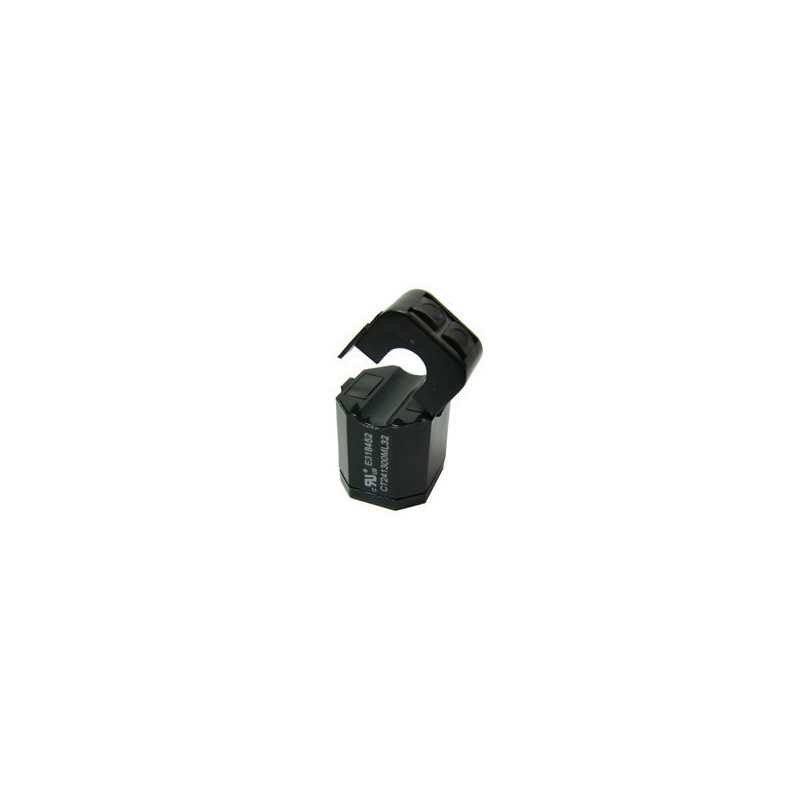

This Split Core Current Transformer Is Able To Produce a 0-20mA AC Signal From a 0-50A AC Primary Current. The Split Core Allows The Transformer To Be Installed Without Disconnecting The Primary Current Carrying Wire. Comes with 70"Leads
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Rated Primary Current at 50/60 Hz: | 50 A |
|---|---|
| Maximum Primary Current: | 180 A |
| Current Ratio: | 50 A : 50 mA |
| Accuracy @RL≤10 Ω: | 0.2% F.S. |
| Linearity @RL≤10 Ω: | 0.5% |
| Operating Temperature: | -20 to 75 °C |
| Storage Temperature: | -20 to 90 °C |
| Dielectric Withstanding Voltage: | 2,500 V / 1 mA / 1 min |
| Impluse Withstand Voltage: | 5 kV Peak |
| Insulation Resistance at 500 VDC: | 100 MΩ |
| Dimensions: | 26 × 26 × 40 mm |
| Weight: | 70 g |
Reference: CT24D300SL
Brand: Private Label
This Split Core Current Transformer Is Able To Produce a 0-20mA AC Signal From a 0-50A AC Primary Current. The Split Core Allows The Transformer To Be Installed Without Disconnecting The Primary Current Carrying Wire. Comes with 70"Leads
