JCD-33A-R/MDR
  • JCD-33A-R/MDR
  • Shinko JCD-33A Series Controller

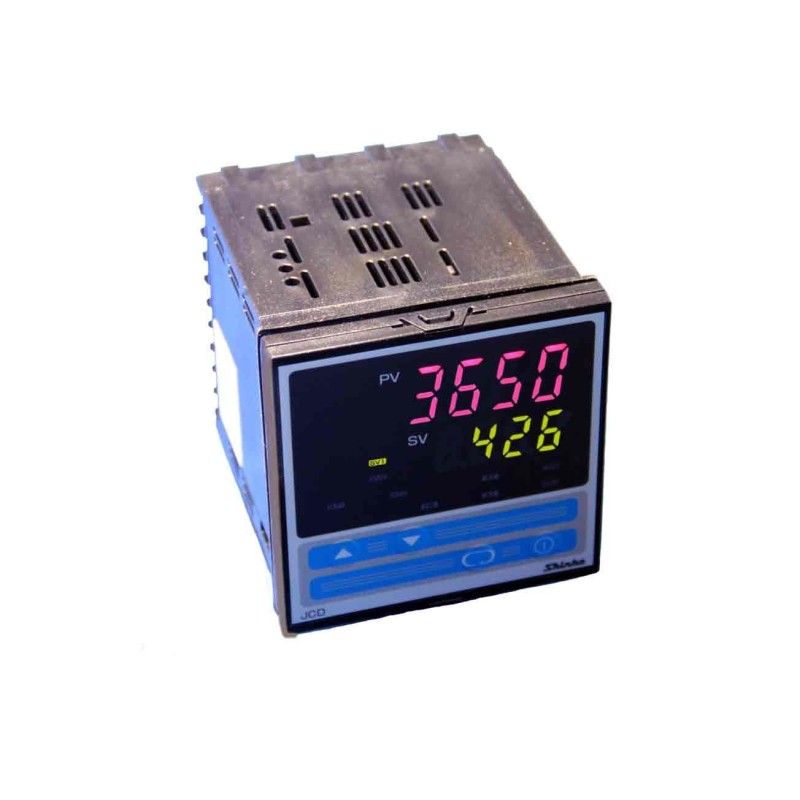

JCD-33A-R/MDR 1/4-DIN 2-Output

JCD-33A-R/MDR
  • One Multi-Sensor Type Input
  • Two 3A Electro-Mechanical Relay Outputs
  • Operating Supply Voltage 100 ~ 240Vac
  • Auto-Tune PID Controller
  • For Basic Heating/Cooling Applications
  • Also Available In 24V dc Or ac  Model JCD-33A-R/M1DR
$379.50
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
Acceptable Universal Inputs:
  • Thermocouples Type K, J, R, S, B, E, T, N
  • RTD Pt100 3-Wire
  • DC Current 0 ~ 20mA, 4~20mA
  • DC Voltage 0~5V, 1~5V, 0~10V

Standard Features:
  • One Programable Alarm Output
  • Input Sampling 0.25/Seconds
  • Operating Ambient 32~122°F 35~85% Relative Humidity
  • IP66 Approval UL, cUL & CE
  • Three Year Warranty
