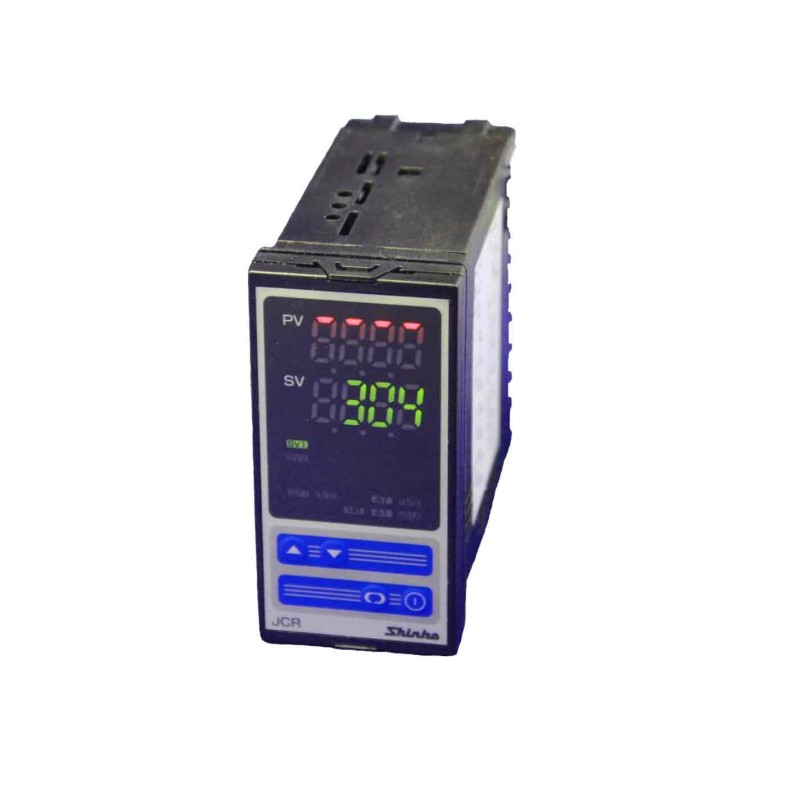

JCR-33A-R/M
  • JCR-33A-R/M
  • Shinko JCR-33A Series Controller

JCR-33A-R/M 1/8-DIN 1-Output

JCR-33A-R/M
  • One Multi-Sensor Type Input
  • One 3A Single Pole Double Throw Electro-Mechanical Relay Output
  • Operating Supply Voltage 100 ~ 240Vac
  • Auto-Tune PID Controller
  • For Basic Heating/Cooling Applications
  • Also Available In 24V dc Or ac  Model JCR-33A-R/M1
$291.50
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
Acceptable Universal Inputs:
  • Thermocouples Type K, J, R, S, B, E, T, N
  • RTD Pt100 3-Wire
  • DC Current 0 ~ 20mA, 4~20mA
  • DC Voltage 0~5V, 1~5V, 0~10V

Standard Features:
  • One Programable Alarm Output
  • Input Sampling 0.25/Seconds
  • Operating Ambient 32~122°F 35~85% Relative Humidity
  • IP66 Approval UL, cUL & CE
  • Three Year Warranty
