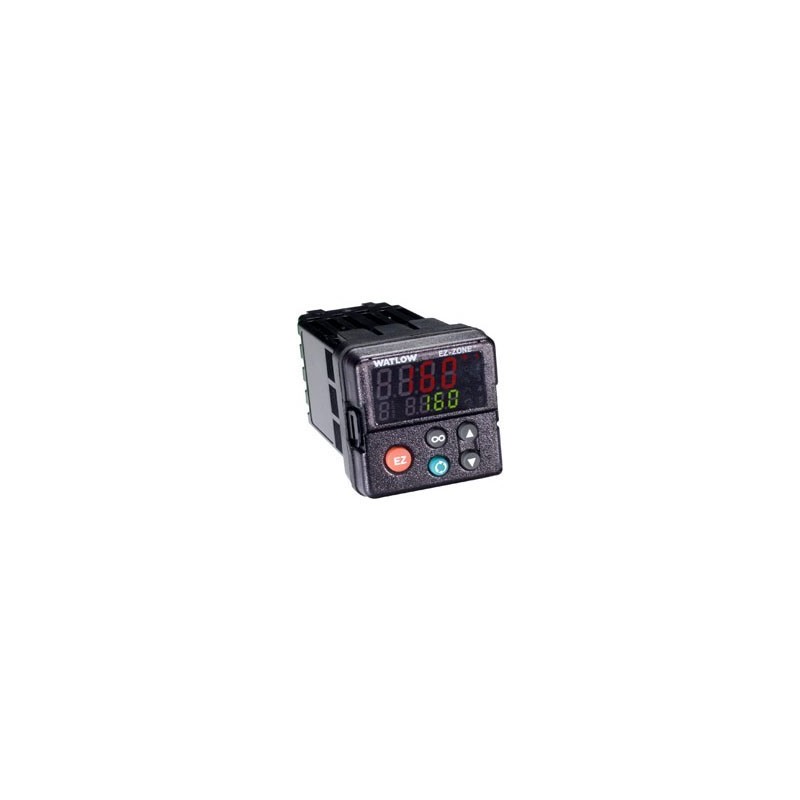

PM6C1CK-AAAABAA 1/16-DIN 2-Outputs

WATLOW EZ-ZONE® PM6C1CK-AAAABAA

• This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
• The serial communications when used with the free WATLOW software, saves time of controller setup.
• Also available in 20 to 28VAC or 12 to 40VDC Model PM6C3CK-AAAABAA

Updated EZ-ZONE® Features

• These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C1CK-BAAABAA
• Watlow's new version of the EZ-ZONE® EXPRESS is the LEGACY® model - PM6C1CK-BAAAHWP
• Available with a more extensive menu EZ-ZONE® PLUS® thermal process - PM6C1CK-BAAAPWP

Universal Input

• This can be a thermocouple grounded or ungrounded
• It can be an RTD 2-wire or 3-wire
• It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Direct replacement for Watlow Series 93 & Series 96

This unit replaces obsolete models:  93AA-1CK0-00AA, 93AA-1CK0-00AB, 93AA-1CK0-00AC, 93AA-1CK0-00AD, 93AA-1CK0-00GG, 93AA-1CK0-00GR, 93AA-1CK0-00RG, 93AA-1CK0-00RR, 93AA-1KC0-00AA, 93AA-1KC0-00AB, 93AA-1KC0-00AC, 93AA-1KC0-00AD, 93AA-1KC0-00GG, 93AA-1KC0-00GR, 93AA-1KC0-00RG, 93AA-1KC0-00RR, 93AB-1CK0-00AA, 93AB-1CK0-00AB, 93AB-1CK0-00AC, 93AB-1CK0-00AD, 93AB-1CK0-00GG, 93AB-1CK0-00GR, 93AB-1CK0-00RG, 93AB-1CK0-00RR, 93AB-1KC0-00AA, 93AB-1KC0-00AB, 93AB-1KC0-00AC, 93AB-1KC0-00AD, 93AB-1KC0-00GG, 93AB-1KC0-00GR, 93AB-1KC0-00RG, 93AB-1KC0-00RR, 93BA-1CK0-00AA, 93BA-1CK0-00AB, 93BA-1CK0-00AC, 93BA-1CK0-00AD, 93BA-1CK0-00GG, 93BA-1CK0-00GR, 93BA-1CK0-00RG, 93BA-1CK0-00RR, 93BA-1KC0-00AA, 93BA-1KC0-00AB, 93BA-1KC0-00AC, 93BA-1KC0-00AD, 93BA-1KC0-00GG, 93BA-1KC0-00GR, 93BA-1KC0-00RG, 93BA-1KC0-00RR, 93BB-1CK0-00AA, 93BB-1CK0-00AB, 93BB-1CK0-00AC, 93BB-1CK0-00AD, 93BB-1CK0-00GG, 93BB-1CK0-00GR, 93BB-1CK0-00RG, 93BB-1CK0-00RR, 93BB-1KC0-00AA, 93BB-1KC0-00AB, 93BB-1KC0-00AC, 93BB-1KC0-00AD, 93BB-1KC0-00GG, 93BB-1KC0-00GR, 93BB-1KC0-00RG, 93BB-1KC0-00RR, 965A-3CK0-0000, 965A-3CK0-00AM, 965A-3CK0-00BH, 965A-3CK0-00BR, 965A-3CK0-00EL, 965A-3CK0-00GG, 965A-3CK0-00GR, 965A-3CK0-00RG, 965A-3CK0-0200, 965A-3CK0-02AM, 965A-3CK0-02BH, 965A-3CK0-02BR, 965A-3CK0-02EL, 965A-3CK0-02GG, 965A-3CK0-02GR, 965A-3CK0-02RG, 965A-3CK0-0300, 965A-3CK0-03AM, 965A-3CK0-03BH, 965A-3CK0-03BR, 965A-3CK0-03EL, 965A-3CK0-03GG, 965A-3CK0-03GR, 965A-3CK0-03RG, 965A-3CK0-0400, 965A-3CK0-04AM, 965A-3CK0-04BH, 965A-3CK0-04BR, 965A-3CK0-04EL, 965A-3CK0-04GG, 965A-3CK0-04GR, 965A-3CK0-04RG, 965A-3KC0-0000, 965A-3KC0-00AM, 965A-3KC0-00BH, 965A-3KC0-00BR, 965A-3KC0-00EL, 965A-3KC0-00GG, 965A-3KC0-00GR, 965A-3KC0-00RG, 965A-3KC0-0200, 965A-3KC0-02AM, 965A-3KC0-02BH, 965A-3KC0-02BR, 965A-3KC0-02EL, 965A-3KC0-02GG, 965A-3KC0-02GR, 965A-3KC0-02RG, 965A-3KC0-0300, 965A-3KC0-03AM, 965A-3KC0-03BH, 965A-3KC0-03BR, 965A-3KC0-03EL, 965A-3KC0-03GG, 965A-3KC0-03GR, 965A-3KC0-03RG, 965A-3KC0-0400, 965A-3KC0-04AM, 965A-3KC0-04BH, 965A-3KC0-04BR, 965A-3KC0-04EL, 965A-3KC0-04GG, 965A-3KC0-04GR, 965A-3KC0-04RG

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
