PM3C3EK-AAAABAA PM3C3EK-AAAAHWP PM3C3EK-BAAAHWP
  • PM3C3EK-AAAABAA PM3C3EK-AAAAHWP PM3C3EK-BAAAHWP
  • PM3C3EK-AAAAHWP PM3C3EK-BAAAHWP

PM3C3EK-AAAABAA 1/32-DIN 2-Outputs

PM3C3EK-BAAAHWP
  • One Universal Input
  • Output #1 (E) - 5A Mechanical Relay (Form C)
  • Output #2 (K) - 0.5A Solid State Relay (Form A)
  • Operating Voltage 12 ~ 40VDC or 20 ~ 28VAC
  • Auto-Tune PID Controller
  • PM Express Set-Up Menu
  • For Basic Heating/Cooling Application
$374.00
Quantity
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

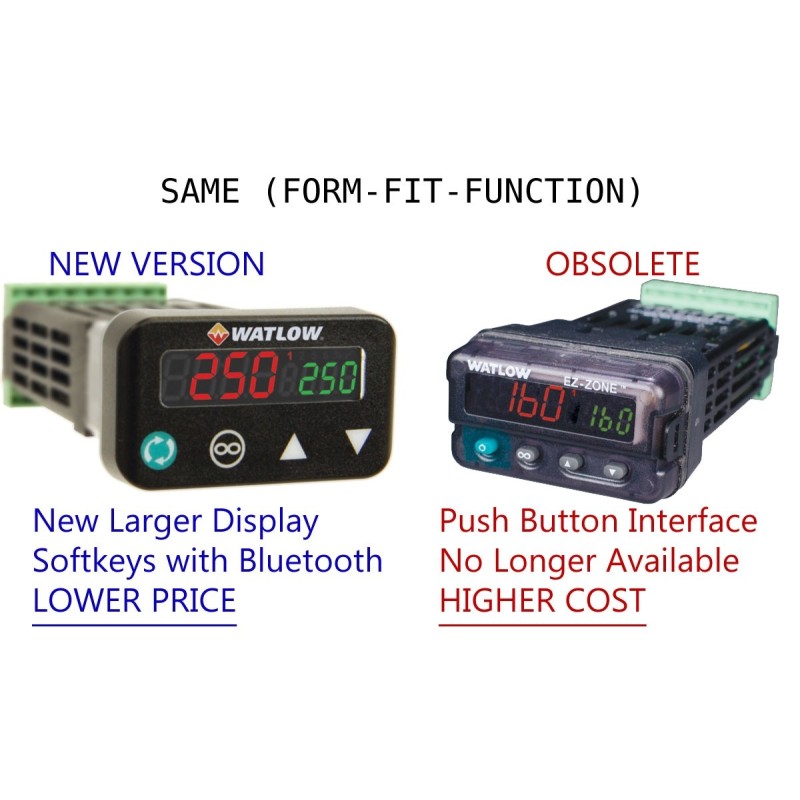

WATLOW PM3C3EK-AAAABAA is now the new PM3C3EK-BAAAHWP

Updated EZ-ZONE® Features

  • Same Firmware so all program parameters remain the same.
  • Same terminal connections so no new wiring changes are required.
  • Same EZ-Zone computer software and Ez-Link mobile app can be used.
  • Same three year warranty.
  • New soft programing front panel keys.
  • New IP67 rating so the front panel can not be removed from it's enclosure.
  • New blue tooth option can be enabled for programing or setting changes.
  • Also available in 100 ~ 240VAC Model PM3C1EK-BAAAHWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Solid State Relay Form A Specifications:

  • Maximum Resistive Load 0.5A at 20 ~ 264VAC
  • Rated For Pilot Duty 20VA 120/240VAC
  • Single Pole Single Throw Normally Open Contact
  • Opto Isolated Without Contact Suppression
  • Off State Leakage Maximum 105mA
  • Output Does Not Supply Power
  • Not for use on DC Loads

Electro-Mechanical Relay Form C Specifications:

  • Maximum Resistive Load 5A at 240VAC Or 30VDC
  • 20mA at 24V Minimum Load
  • Rated For Pilot Duty 125VA at 120/240VAC and 25VA at 24VAC
  • Single Pole Double Throw Normally Open Contact
  • 100,000 Cycles at Rated Load
  • Output Does Not Supply Power
  • For use on AC or DC Loads

NOTE: Switching Pilot Duty Devices Such As Control Coils For Relays Or Contactors Produces An Electro-Magnetic Force When De-Energizing Those Type Of Loads. To Protect The Controller's Electronic Circuitry From The Inductive User Load, The Use Of An RC Suppressor Also Known As A Snubber Device Should Be Wired Between The Load And The Load Output Terminal Of The Controller. An Exception Is The Use Of Watlow Solid State Relays Having Internal RC Suppression.

Blue Tooth Communication Interface Comes Standard With All PM Series Controllers Which Can Provide An Easy Alternative to Setting Up Program Menu Options. Various Profiles Can Be Configured And Saved As Files And Can Be Up Loaded To Other PM Controllers. Smart phone, I-pad, laptop, using Watlow's free app EZ-Link provide an easy alternative programing method. The blue tooth is user enabled or disabled.

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.

Product Details
PM3C3EK-BAAAHWP
0
4 Items
