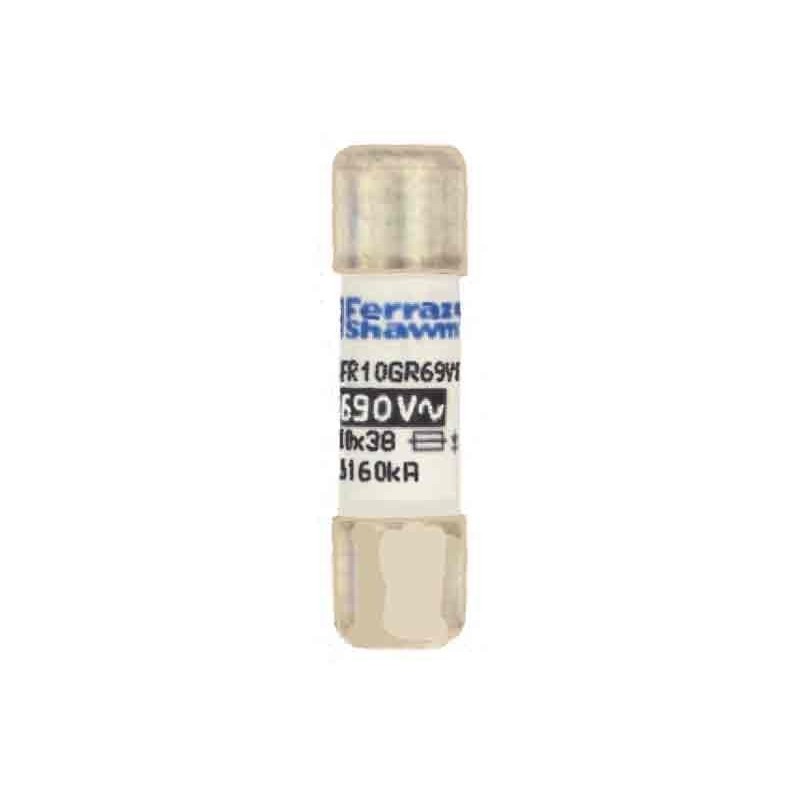

Z1014575 Mersen 8A 700Vac Fuse

Reference FR10GR69V8

Brand Mersen

Primarily Used For Semiconductor Protection
13/32"OD x 1-1/2"L (10mm x 38mm) Rated 700Vac 500Vdc
Inturrupting Rating 160Ka@690Vac
I²T Clearing Rating 35A²Seconds @690Vac
I²T Clearing Rating 23A²Seconds @480Vac
I²T Clearing Rating 14A²Seconds @240Vac
I²T Clearing Rating 11A²Seconds @120Vac

$18.95

Quantity

In stock: 10 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

These Semiconductor Protecting Fuses Are Extremely Fast Acting With Current Limiting And Excellent Cycling Ability. Some Recommended Applications are Solid State Relays, SCR Controllers, Motor Drives, Small Inverters And Equipment Requiring The Highest Degree Of Protection. Similar To Bussman FWC-8A10F

Can Be Used With Ferraz Shawmut Ultrasafe Fuse Holders.

Product Details

Reference FR10GR69V8

In stock 10 Items

Specific References

UPC: 782001942740

Attachments

Download

Protistor Semiconductor Catalog

Download (2.61KB)
