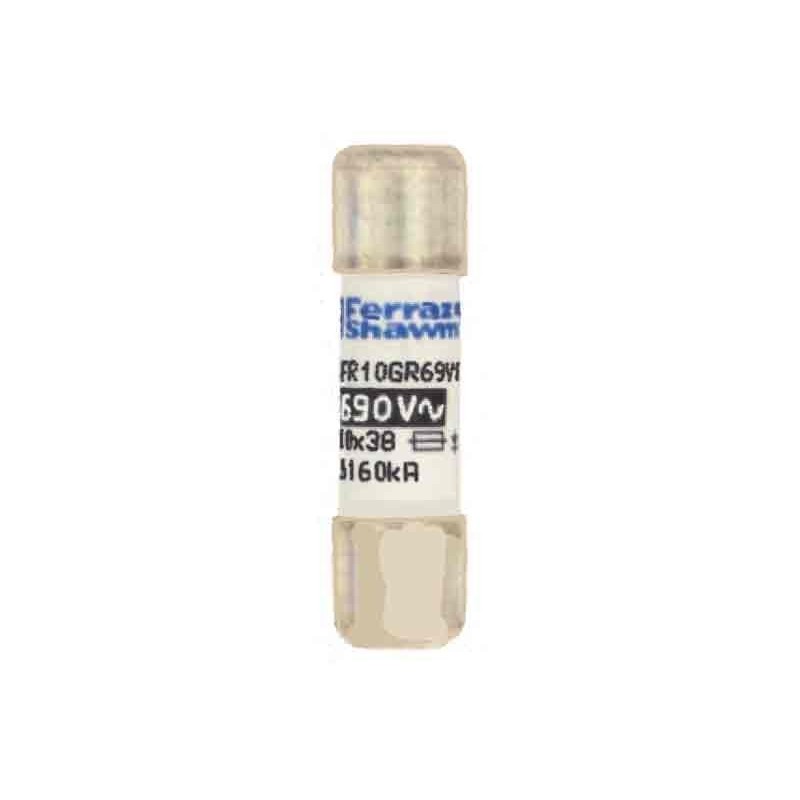

A1014576 Mersen 10A 700Vac Fuse

Reference FR10GR69V10

Brand Mersen

Primarily Used For Semiconductor Protection
13/32"OD x 1-1/2"L (10mm x 38mm) Rated 700Vac 500Vdc
Inturrupting Rating 160Ka@690Vac
I²T Clearing Rating 55A²Seconds @690Vac
I²T Clearing Rating 37A²Seconds @480Vac
I²T Clearing Rating 22A²Seconds @240Vac
I²T Clearing Rating 18A²Seconds @120Vac

$18.95

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

These Semiconductor Protecting Fuses Are Extremely Fast Acting With Current Limiting And Excellent Cycling Ability. Some Recommended Applications are Solid State Relays, SCR Controllers, Motor Drives, Small Inverters And Equipment Requiring The Highest Degree Of Protection. Similar To Bussman FWC-10A10F

Can Be Used With Ferraz Shawmut Ultrasafe Fuse Holders.

Product Details

Reference FR10GR69V10

Specific References

UPC: 782001942741

Attachments

Download

Protistor Semiconductor Catalog

Download (2.61KB)
